Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen

Large Image : Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY-OF-P6

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	US$ 1,350 ~ 1,380 / Square Meter
Packaging Details:	Flight Case (0.90x0.68x0.78m，case size based on cabinet size. 6 cabinets in 1 flight case)
Delivery Time:	10-12 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	6mm	LED Encapsulation:	SMD3535
Module Size:	192mm X 192mm	Cabinet Size:	576mm X 576mm
Cabinet Weight:	12kg/pcs	Waterproof:	IP65
Lifespan:	100,000hrs	Certificate:	CE, LVD, RoHS
Highlight:	LED Cabinet , LED display screen

Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen

Decription:

Outdoor P6 unit board adopts mainly two LED encapsulation. One kind is SMD2828, another kind is SMD3535. For the price, SMD2828 is cheaper than SMD3535. For the performance, SMD3535 is better than SMD2828. Coincide with the development trend of the market, the price differences between them become smaller and smaller. Hence the module with SMD3535’s cost-effective become higher and higher.

Features:

1. Screen brightness can be adjustable via LED Studio.

2. Screen working humidity: 10% ~ 95%.

3. Screen working temperature: -20ºc ~ +60ºc.

4. Energy saving design makes sure low power consumption.

Specification:

Pixel Pitch	6mm
Pixel Density	27,777dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3535
Module Size	192mm x 96mm
Module Resolution	32dots x 32dots
Cabinet Size	576mm x 576mm
Cabinet Resolution	192dots x 192dots
Drive Duty	1/8scan Constant Current
Brightness	>6,500nits
Viewing Distance	6m - 60m
Viewing Angle	H: 120°, V:120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	1,200W/sqm
Ave. Power Consumption	400W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Waterproof	IP65
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Cabinet Weight	12kg
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Music concert, movie theaters, fitness halls, country clubs, clubs, massage rooms, bars,

cafes, Internet bars, beauty shops, golf course rental use.

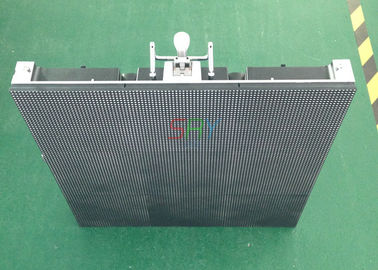

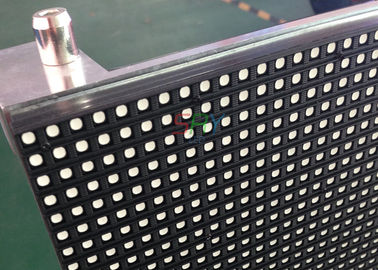

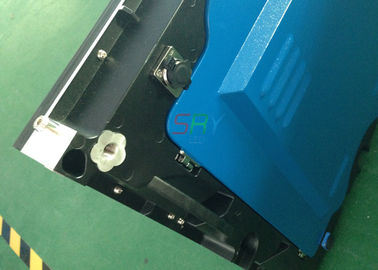

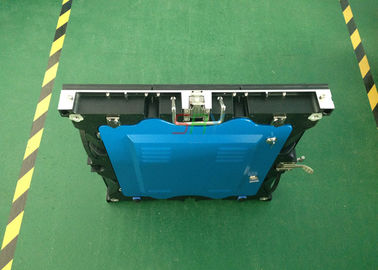

Cabinet Pictures:

Die - Casting Al LED Display Cabinet 576mm x 576mm , Full Color LED Screen

Competitive Advantages:

1. No noise, low radiation

2. Super light & slim, seamless splice design

3. Fast and easy to install without tool

4. Energy-saving, environmental and low consumption design
