| Pixel Pitch: | 10mm | LED Encapsulation: | DIP570 |
|---|---|---|---|
| Module Size: | 320mm X 160mm | Drive Duty: | 1/4scan Constant Current |
| Module Weight: | 0.75kg | Waterproof: | IP65 |
| Brightness: | 7500cd/sqm | Warranty: | 2 Full Years |
| Highlight: | Indoor LED Display Module,LED screen Module |
||
DIP570 LED Backlight Module Asynchronous 7500 cd / sqm Brightness
Decription:
2. Screen working humidity: 10% ~ 95%.
3. Screen working temperature: -20ºc ~ +60ºc.
4. Screen viewing angle: H: 120°; V: 80°
Specificition:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10,000dots/sqm |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
DIP570 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Duty |
1/4 Constant Current |
|
Brightness |
≥7500nits |
|
Viewing Distance |
10m - 100m |
|
Viewing Angle |
H: 120°; V: 80° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V-20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-40℃~+80℃ |
|
Working Temperature |
-20℃~+60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Supermarket, large scale shopping mall, exclusive agency, chain store, star rated hotel, restaurant, travel agency, pharmacy and etc outside advertising use.

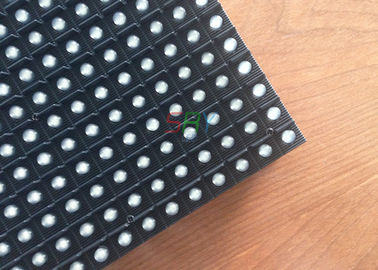

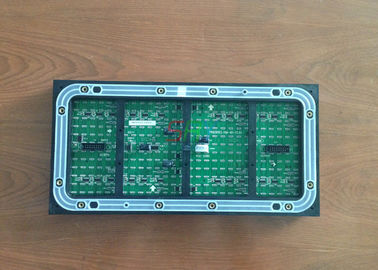

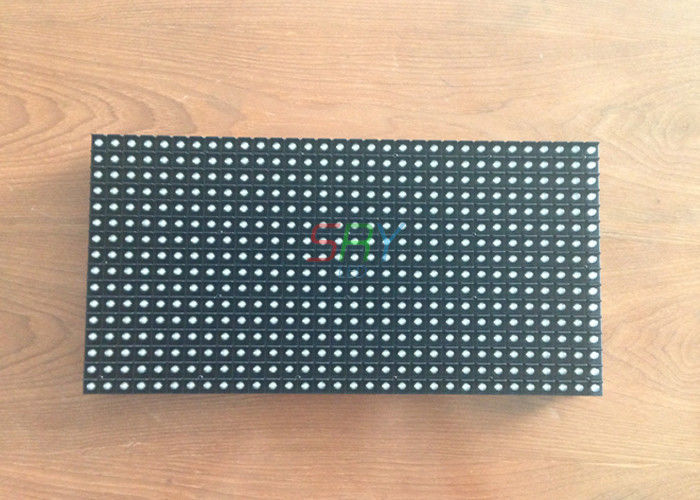

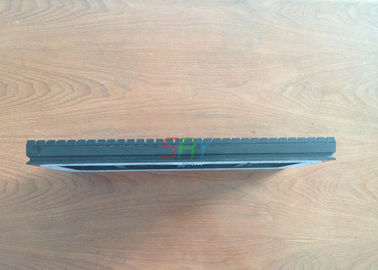

Module Pictures:
Competitive Advantages:
1. CE, LVD, RoHS certified, 2 full yearrs warranty.
2. High brightness, high definition, wider viewing angle. Waterproof IP: 65.
3. Longlife span, energy-saving design and lower power consumption.
