Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | Module Size: | 192mm X 192mm |
|---|---|---|---|
| Cabinet Size: | 960mm X 960mm | Drive IC: | MBI Or JXI |
| Brightness: | 6500cd/sqm | Waterproof: | IP65 |
| Led Type: | SMD3535 | Cabinet Weight: | 45KG/sqm |
| High Light: | advertising LED display,led advertisement board |
||
SMD3535 6mm LED Advertising Screens 4m x 3m Synchronous LED Digital Billboards
Quick Detail
1. Name:P6 led advertising screen
2. Pixel Pitch:6 mm
3. Brightness:6500cd/m2
4. Recommended Viewing Distance:6-100m
5. Contrast:4000:1
6. Refresh Rate:1000HZ
Description
1. P6 , P7.62 , P8 , P10 , P12 , P16 are Available
2. Easy to install and maintenance
3. Widely used in indoor and outdoor advertising and media promotion, such as Exhibition,
Shopping mall, Football Stadium, Party etc
4. High quality with Vivid visual effect
5. Colorful moving videos and images
6. Environmental-protected and saving cost
7. Good sales service
8. Prompt delivery
Competitive Advantage
1. We do packaging LED chip in our own factory
2. 24/7 hours online Remote Support
3. Solution and PCB design
4. Free factory training or engineer support in the spot
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine,
Solder Paste Printing Machine,Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium speed Automatic SMT Machine,
Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI)
Equipement.
Applications
Commercial advertising, buildings, night club, entertainment events, business establishments, stock exchange centers, bus station, schools, telecommunications, stadiums, shopping malls, railways, airports, high way etc.
Specification
|
Pixel Pitch |
6mm |
|
Pixel Density |
27777dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Mode |
1/8 Scan, Constant Current |
|
Brightness |
>6500cd/sqm |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
1000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1200W/sqm |
|
Ave. Power Consumption |
500W/sqm |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
PC Display Resolution |
1280x1024 |
|
Operating System |
Win 98, Win2000, XP, Win7 ,Win8.etc |
|
Video Signal Mode |
RF,S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |

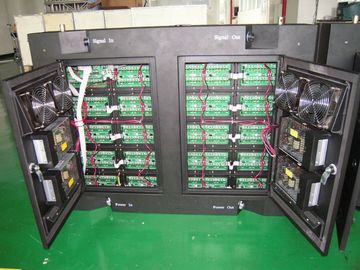

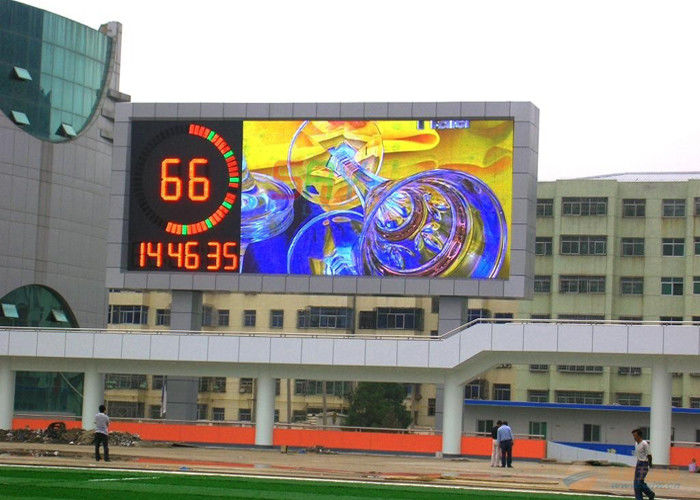

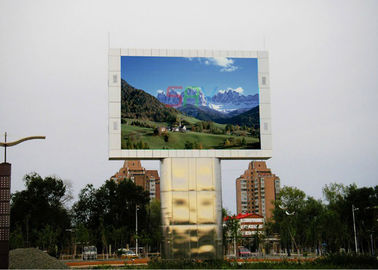

Product Images
