Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | LED Encapsulation: | DIP570 |
|---|---|---|---|
| Drive Duty: | 1/4 Constant Current | Module Size: | 320mm X 160mm |
| Cabinet Size: | 960mm X 960mm | Cabinet Color: | Grey |
| Cabinet Weight: | 45kg/cabinet | Waterproof: | IP65 |
| High Light: | outside advertising boards,full color led screen |
||
Decription:
3. Waterproof: IP65 makes sure the display screen keep working in raining days.
4. Wide viewing angle: H: 120º, V: 80º .
2. Screen working humidity: 10% ~ 95%.
3. Screen working temperature: -20ºc ~ +60ºc.
4. Energy saving design makes sure low power consumption.
Specificition:
| Pixel Pitch | 10mm |
| Pixel Density | 10,000dots/sqm |
| Color Configuration | 1R1G1B 3in1 |
| LED Encapsulation | DIP570 |
| Module Resolution | 32dots x 16dots |
| Module Size | 320mm x 160mm |
| Cabinet Resolution |
96dots x 96dots |
| Cabinet Size | 960mm x 960mm |
| Screen Resolution | 672dots x 384dots |
| Screen Size | 6,720mm x 3,840mm |
| Max. Power Consumption | 750W/sqm |
| Ave. Power Consumption | 250W/sqm |
| Refresh Rate | 2,000HZ |
| Frame Rate | 120frame/sec |
| Waterproof | IP65 |
| Lifespan | 100,000hrs |
| MTBF | 10,000hrs |
| Certificate | CE, LVD, RoHS |
|
Business Organizations |
Supermarket, large-scale shopping malls, exclusive agency, chain shops, largescale sales, starrated hotels, restaurants, travel agencies, pharmacy. |
|
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools; |
|
Public Places |
Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |

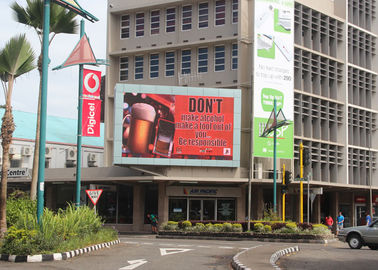

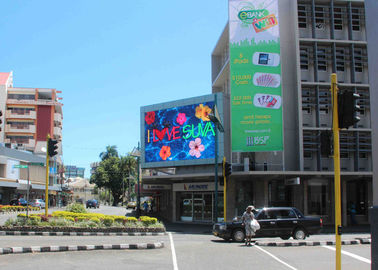

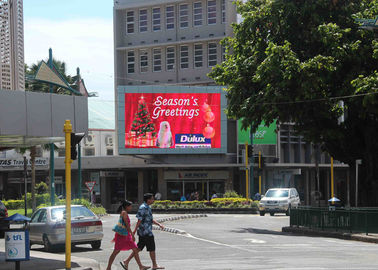

Application Pictures:
Competitive Advantages:
1. CE, LVD, RoHS certified, 2 full years warranty.
2. High brightness, high definition, wider viewing angle. Waterproof IP: 65.
3. Longlife span, energy-saving design and lower power consumption.
