Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | Module Size: | 192mm X 192mm |
|---|---|---|---|
| Confirguration: | 1R1G1B | Led Chip: | SMD3528 |
| Drive Method: | 1/16 Scan Or 1/8 Scan | Cabinet Size: | 576mm X 576mm |
| Cabinet Material: | Die Casting Aluminum Or Brushed Aluminum | Cabinet Weight: | 8KG/pcs |
| High Light: | hire LED screen,Rent LED Display |
||
RGB 3 in 1 Rental LED Screen Brushed aluminum Cabinet LED Video Display
Description
1. Quiet fan design, excellent heat dissipation, noiseless.
2. Super thin power supply inside.
3, High definition makes video and images very clear.
4. Fast locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
5. Cabinet weight is only 8 KG, it is very light to carry and decrease the transportation cost and the intensity of labor.
Features
1. Ultra thin and light cabinet, fast locks, power plug and hanging design make it easy to assemble and disassemble.
2. High refresh rate, HD video and vivid images.
3. Tidy and beautiful cabinet desgin.
4. Good heat dissipation, noiseless.
5. At least 48hours aging test before delivery.
Company Equipments
Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine,
Solder Paste Printing Machine, Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium speed Automatic SMT Machine,
Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI)
Equipment.
Competitive Advantages
1. CE & RoHS certificate
2. 24 months warranty, life long free tech-support
3. Wide viewing angle, smooth surface
4. Excellent contrast ratio, high resolution
5. Perfect uniformity, no mosaic
6. Light weight, easy installation
Specification
|
Pixel Pitch |
6mm |
|
Pixel Density |
27777dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3528 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
576mm x 576mm |
|
Cabinet Weight |
8KG |
|
Brightness |
≥1100 cd/sqm |
|
Viewing Distance |
6m-60m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
700W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |

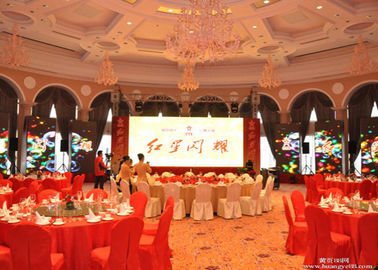

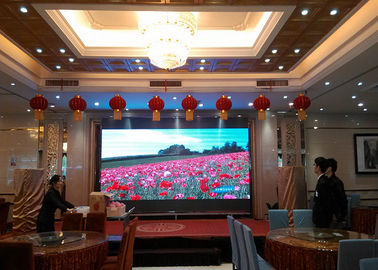

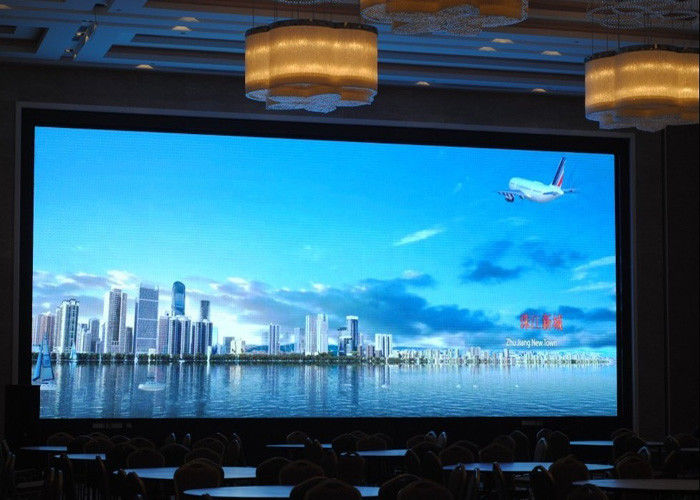

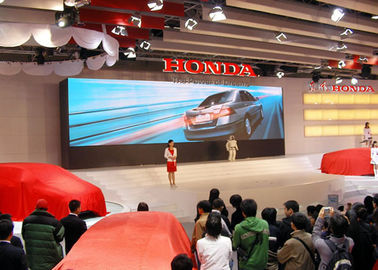

Product Images
