Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Confirguration: | 1R1G1B | Led Chip: | SMD3528 |
| Drive Method: | 1/16 Scan | Cabinet Size: | 640mm X 640mm |
| Cabinet Material: | Die Casting Aluminum Or Brushed Aluminum | Brightness: | 1500cd/sqm |
| High Light: | rental LED screen,hire LED screen |
||
P5 Commercial Rental LED Display , SMD 1 / 16 Scan LED Video Wall Rental
Description
1. Quiet fan design, excellent heat dissipation, noiseless.
2. Super thin power supply inside.
3, High definition makes video and images very clear.
4. Fast locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
5. Cabinet weight is only 12 KG, it is very light to carry and decrease the transportation cost and the intensity of labor.
Features
1, Equipped with professional video processor, which supports signal formats like RGB, DVI, Composite Video, HDMI, SDI , broadcast etc.
2, With video processor, the displaying effect is better, clear picture and no blink.
3, Supports brightness adjustment.
4, Protection grade is IP43, for indoor rental use.
5, Flight case would be provided in order to store and transport conveniently.
6, It is usually used for stage background and wedding background, club etc.
Competitive Advantages
1, First-class led chip and IC
2, 48 hours aging for modules and led screens
3, 24/7 after-sale service
4, Short delivery time
5, Sample and trial order are accepted
Specification
Pixel Pitch | 5mm |
Pixel Density | 40000dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD3528 |
Module Size | 320mm x 160mm/ 160mm x 160mm |
Module Resolution | 64dots x 32dots/ 32dots x 32dots |
Drive Mode | 1/16 Scan |
Standard Cabinet Size | 640mm x 640mm |
Cabinet Weight | 12KG |
Brightness | ≥1500 cd/sqm |
Viewing Distance | 5m-50m |
Viewing Angle | H: 140°; V:120° |
Refresh Rate | 2000HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30℃~+70℃ |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP43 |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Applications
Business Organizations | Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
Financial Organizations | Banks, insurance companies, post offices, hospital, schools |
Public Places | Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
Entertainments | Movie theaters, clubs, stages |

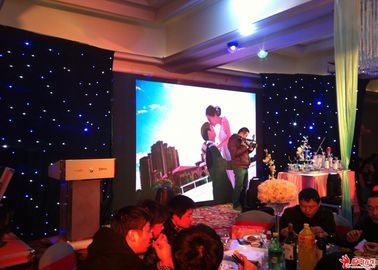

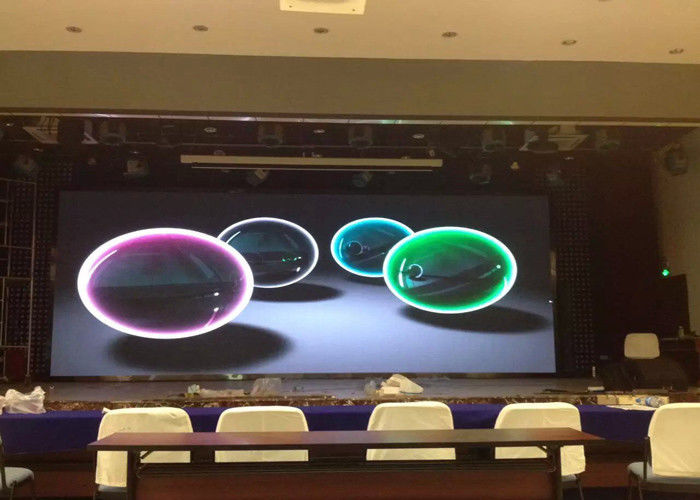

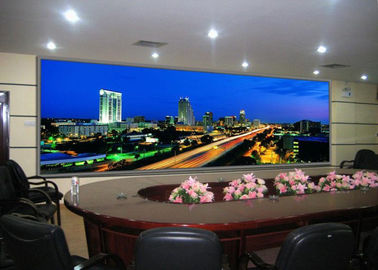

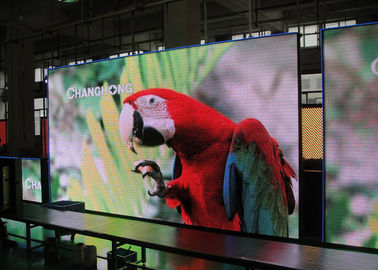

Product Images
