Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Confirguration: | RGB 3 In 1 | Led Chip: | DIP570 |
| Leds Brand: | Epistar | Drive IC: | MBI5024 Or JXI5020 |
| Brightness: | 7500cd/sqm | Waterproof: | IP65 |
| High Light: | rental LED screen,Rent LED Display |
||
P10 Outdoor Rent LED Display Novastar System DIP570 LED Video Screen Rental
Description
1. Hanging beam structural design makes it easy and fast for installation.
2. Neat and Hidden Wiring allow the LED display more tidy and beautiful.
3. Locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
4. Fast installation, a cabinet could be uninstalled in one minute.
Features:
1, Control system can be various, Linsn, Nova, Xixun, Huidu etc.
2, Power supply. Meanwell, Chuanglian and G-energy is available.
3, Led Chip, DIP RGB 3 in 1.
4, Cabinet can be die casting aluminum and brushed aluminum.
Competitive Advantages:
1, First-class led chip and IC
2, Long time aging for modules and led screens
3, 24/7 after-sale service
4, Free technology and operation training
5, Engineer guide install and operate online
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
RGB 3 in 1 |
|
LED Package |
DIP570 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Brightness |
7500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
|
Business Organizations |
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
|
Entertainments |
Movie theaters, clubs, stages |

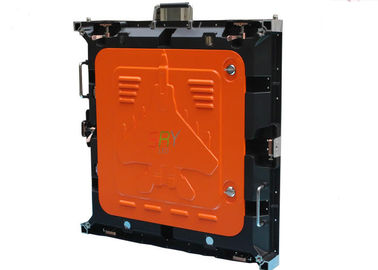

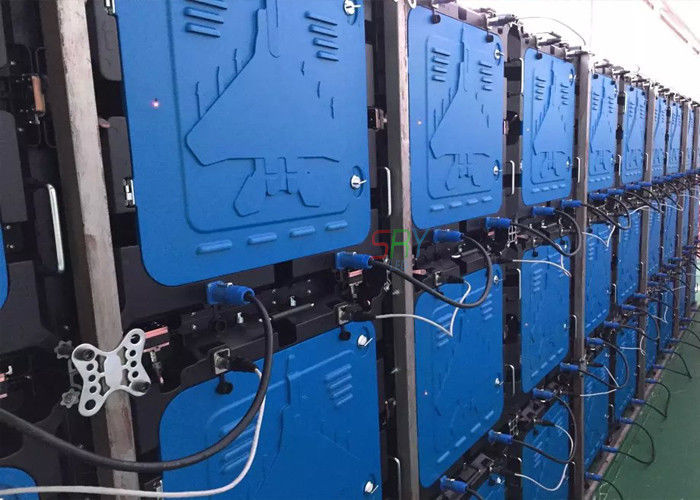

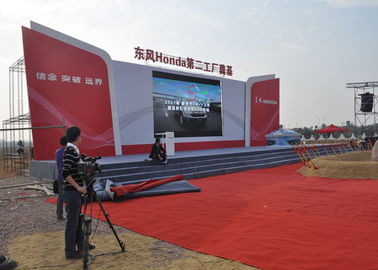

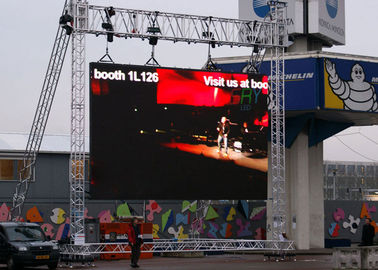

Product Images:
