Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4mm | Module Size: | 256mm X 128mm |
|---|---|---|---|
| Confirguration: | RGB 3 In 1 | Led Chip: | SMD2121 |
| Drive Method: | 1/16 Scan | Led Color: | Black |
| Cabinet Size: | 512mm X 512mm | Cabinet Material: | Die Casting Aluminum |
| High Light: | hire LED screen,Rent LED Display |
||
Ultra Slim P4 HD Indoor Rental LED Display Screen SMD2121 For Stage / Concert
Description
1. High Resolution. 62500dots/sqm resolution makes vivid videos and images visual effection.
2. Neat and Hidden Wiring allow the LED display more tidy and beautiful.
3. Fast locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
4. Light Weight. Cabinet size is 512x512mm, and weight is only 7 KG, it is very light to carry.
Features
1, Equipped with professional video processor, which supports signal formats like RGB, DVI, Composite Video, HDMI, SDI , broadcast etc.
2, With video processor, the displaying effect is better, clear picture and no blink.
3, Supports brightness adjustment.
4, Protection grade is IP43, for indoor rental use.
5, Flight case would be provided in order to store and transport conveniently.
6, It is used at open stage for concerts etc.
Competitive Advantages
1, First-class led chip and IC
2, 48 hours aging for modules and led screens
3, 24/7 after-sale service
4, Free technology and operation training
5, Engineer guide install and operate online
Specification
Pixel Pitch | 4mm |
Pixel Density | 62500dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2121 |
| LED Color | Black |
Module Size | 256mm x 128mm |
Module Resolution | 64dots x 32dots |
Drive Duty | 1/16 Scan |
Standard Cabinet Size | 512mm x 512mm |
Cabinet Weight | 7KG |
Brightness | ≥1200 cd/sqm |
Viewing Distance | 4m-40m |
Viewing Angle | H: 140°; V:120° |
Refresh Rate | 2000HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30℃~+70℃ |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP43 |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Applications
Business Organizations | Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
Financial Organizations | Banks, insurance companies, post offices, hospital, schools |
Public Places | Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
Entertainments | Movie theaters, clubs, stages |

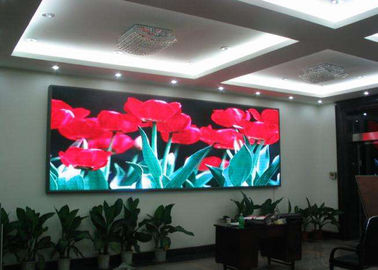

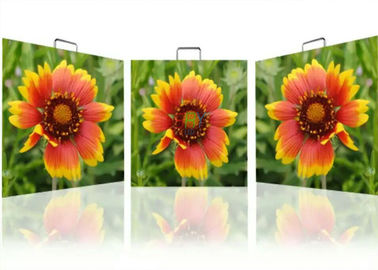

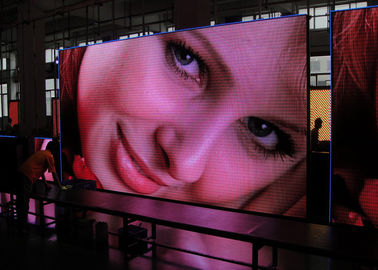

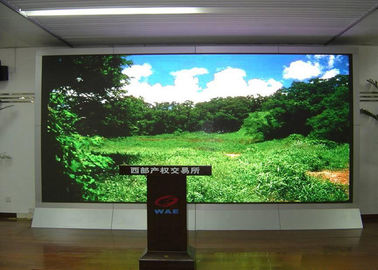

Product Images
