Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 8mm | Module Size: | 256mm X 128mm |
|---|---|---|---|
| Confirguration: | 1R1G1B | Led Chip: | SMD3535 |
| Leds Brand: | Nationstar | Drive IC: | MBI Or JXI |
| Brightness: | 6000cd/sqm | Cabinet Size: | 768mm X 768mm |
| High Light: | advertising LED display,LED advertising billboards |
||
CE / RoHS 8MM Full Color LED Display Screen 15625 dots per sqm 256mm x 128mm
Description
1. High Definition & High Performance
15625 dots per sqm, SRY P8 LED advertising display can show vivid HD images and videos.
2. Vivid Picture Quality
With High refresh rate and high quality LEDs, SRY P8 led advertising display offer excellent visual effect
to audience.
3, High brightness
SRY SMD P8 led advertising screen brightness can up to 6000cd/sqm, it is suitable for both indoor and outdoor use.
4, Big viewing angle
SRY P8 led advertising screen viewing angle is 140 degree for horizontal and vertical.
6, Waterproof Grade
SRY P8 led advertising screen waterproof grade is IP65, is suitable for rainy and snowy weather.
Features
1, Control system can be various, Sychronous system, 3G, WIFI, GPRS etc
2, Many kinds of cabinet shape, rear maintanance, front access, double side, curved, ball etc
3, Led Chip, SMD3535 RGB 3 in 1
Competitive Advantage
1. We do packaging LED chip in our own factory
2. 24/7 hours online Remote Support
3. Solution and PCB design
4. Free factory training or engineer support in the spot
5. Onsite installation instruction and regular inspection
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine,
Solder Paste Printing Machine,Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium speed Automatic SMT Machine,
Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI)
Equipement.
Applications

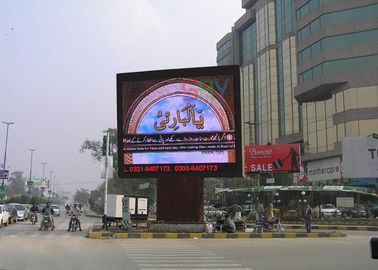

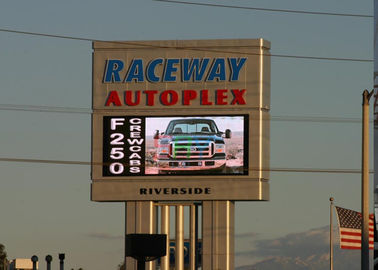

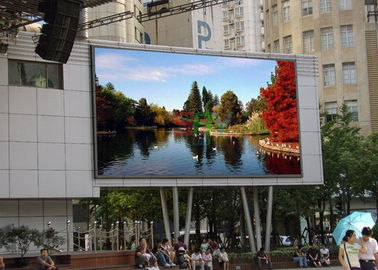

Commercial advertising, buildings, night club, entertainment events, business establishments, stock exchange centers, bus station, schools, telecommunications, stadiums, shopping malls, railways, airports, high way etc.
Specification
|
Pixel Pitch |
8mm |
|
Pixel Density |
15625dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|

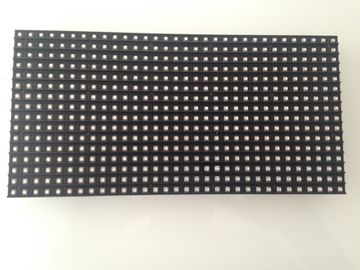

Module Size |
256mm x 128mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Mode |
1/4 Scan Constant Current |
|
Module Weight |
0.4KG/pcs |
|
Interface |
Hub75-A |
|
Standard Cabinet Size |
768mm x 768mm |
|
Cabinet Weight |
32KG |
|
Brightness |
6000cd/sqm |
|
Viewing Distance |
8m-60m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
1000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
PC Display Resolution |
1024x768 |
|
Control PC |
With DVI Graphic card |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Product Images:
