Outdoor Full Color P6 LED Display Module 1R1G1B IP65 192mm x 192mm

Large Image : Outdoor Full Color P6 LED Display Module 1R1G1B IP65 192mm x 192mm

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY-OF-P6

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	US$ 48 ~ 50 / PCS
Packaging Details:	Free Charge Carton(40pcs in one carton)
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	3,000 PCS per Month

Contact Now

Detailed Product Description

Pixel Pitch:	6mm	LED Encapsulation:	DIP246
Module Size:	192mm X 192mm	Drive Duty:	1/8scan Constant Current
Module Weight:	0.80kg	Waterproof:	IP65
Brightness:	8,000cd/sqm	Warranty:	2 Full Years
Highlight:	Indoor LED Display Module , LED screen Module

Outdoor Full Color P6 LED Display Module 1R1G1B IP65 192mm x 192mm

Decription:

P6 outdoor 1R1G1B DIP246 LED module. It has high brightness and high definition. With the smallest DIP LEDs, it looks very beautiful.

Features:

1. Screen brightness: >8,000cd/sqm

2. Screen working humidity: 10% ~ 95%.

3. Screen working temperature: -20ºc ~ +60ºc.

4. Screen viewing angle: H: 120°; V: 70°

Specificition:

Pixel Pitch	6mm
Pixel Density	27,777dots/sqm
Color Configuration	1R1G1B
LED Encapsulation	DIP246
Module Size	192mm x 192mm
Module Resolution	32dots x 32dots
Drive Duty	1/8 Constant Current
Brightness	>8,000nits
Viewing Distance	6m - 60m
Viewing Angle	H: 120°; V: 70°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V-20A, AC110V/ 220V/ 50HZ
Max Power Consumption	1,200W/sqm
Ave. Power Consumption	400W/sqm
Storage Temperature	-40℃~+80℃
Working Temperature	-20℃~+60℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof	IP65
Operating Humidity	10%~95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Supermarket, large scale shopping mall, exclusive agency, chain store, star rated hotel, restaurant, travel agency, pharmacy and etc outside advertising use.

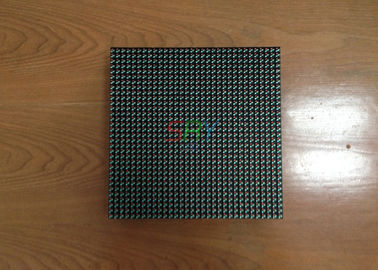

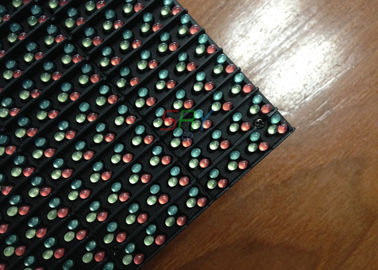

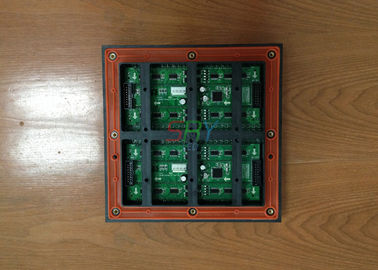

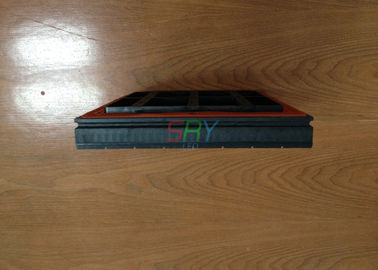

Module Pictures:

Outdoor Full Color P6 LED Display Module 1R1G1B IP65 192mm x 192mm

Competitive Advantages:

1. 24hrs best post-sale services.

2. High brightness, high definition, wider viewing angle. Waterproof IP: 65.

3. Longlife span, energy-saving design and lower power consumption.

4. CE, LVD, RoHS certified, 2 full yearrs warranty.
