Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | LED Encapsulation: | DIP346 |
|---|---|---|---|
| Module Size: | 160mm X 160mm | Brightness: | 7,500nits |
| Waterproof: | IP65 | MTBF: | 10,000hrs |
| Lifespan: | 100,000hrs | Warranty: | 2 Full Years |
| Highlight: | LED advertising billboards,LED digital billboards |
||
10000dots / sqm LED Video Billboards Easy Maintain LED Outdoor Advertising Board
Decription:
2. Easy to maintain
3. Good color uniformity
4. Low power consumption
5. Slim screen thickness
6. Light cabinet design
7. 100,000hrs lifespan
Specificition:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10,000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Encapsulation |
DIP346 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
16dots x 16dots |
|
Drive Duty |
1/4scan Constant Current |
|
Brightness |
>7,500nits |
|
Viewing Distance |
10m - 100m |
|
Viewing Angle |
H: 120°; V: 70° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V-20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-40℃~+80℃ |
|
Working Temperature |
-20℃~+60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Outdoor column LED billboards are widely use in road side, express way, gas station, playground and etc.

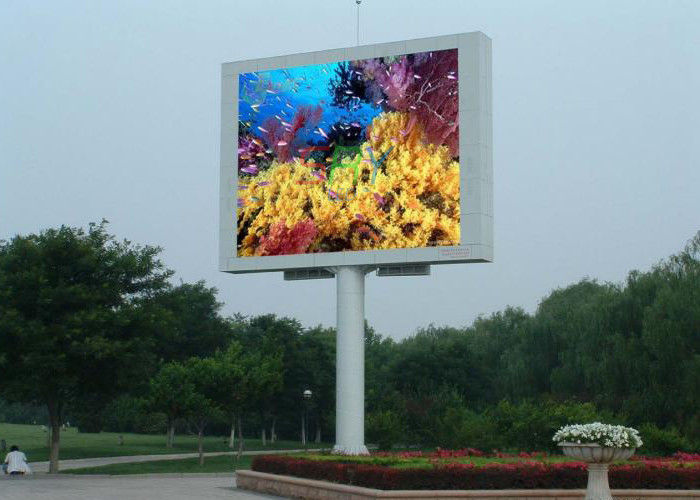

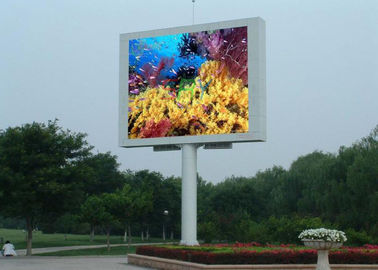

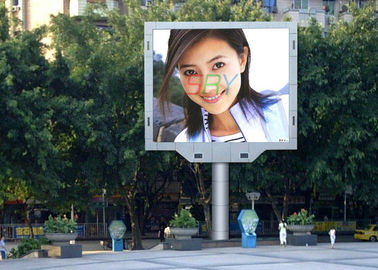

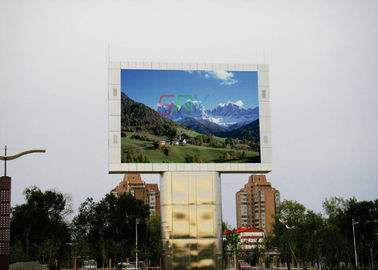

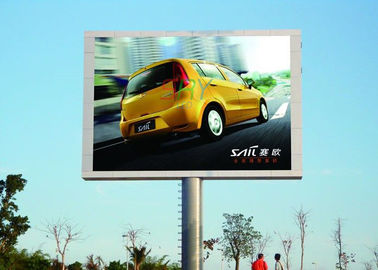

Application Pictures:
Competitive Advantages:
1. High brightness: >7,500nits
2. Wide viewing angle: H: 120°; V: 70°
3. Best viewing distance: 10m ~ 100m
4. Waterproof: F: IP65, R: IP54
