Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Module Size: | 160mm X 160mm |
|---|---|---|---|
| Cabinet Size: | 960mm X 960mm | Control Way: | Sychronous |
| Control System: | Linsn | Waterproof: | IP65 |
| Best Viewing Distance: | 10m - 100m | Warranty: | 2 Full Years |
| Highlight: | truck mounted led display,led truck advertising |
||
Outdoor P10 Truck Mounted LED Screen 7500nits , Full Color LED Advertising Truck
Description:
P10 3.84m x 1.92m Outdoor High Brightness 7,500nits Full Color Truck Mounted LED Display.
1. Screen size: 3.84m(W) x 1.92m(H)
2. Cabinet size: 0.96m(W) x 0.96m(H)
3. Cabinet quantity: 4pcs(W) x 2pcs(H)
2. Cabinet thinkness: 120mm
3. Best Viewing angle: H: 120º, V: 70º
4. Best viewing distance: 10m - 100m
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10,000dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B |
|
LED Encapsulation |
DIP346 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
16dots x 16dots |
|
Cabinet Size |
960mm x 960mm |
|
Cabinet Resolution |
96dots x 96dots |
|
Drive Duty |
1/4 Constant Current |
|
Brightness |
>7,500nits |
|
Viewing Distance |
10m - 100m |
|
Viewing Angle |
H: 120°, V:70° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
| Waterproof | IP65 |
|
Cabinet Weight |
45kg |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Vehicle, truck, trailer, pickup car and etc mounted use for advertising

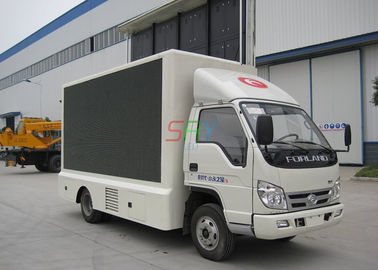

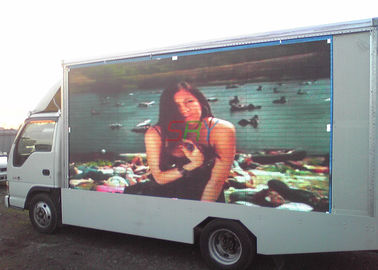

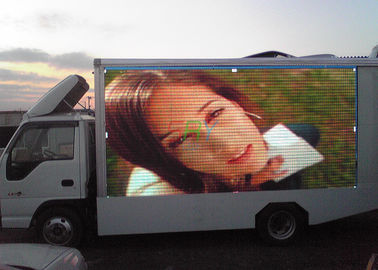

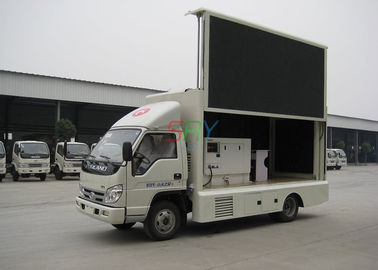

Application Pictures:
Competitive Advantages:
1. Energy saving design
2. Seamless splice design
3. Super slim cabinet design
4. Super light cabinet design
