Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 8mm | Module Size: | 256mm X 128mm |
|---|---|---|---|
| Cabinet Size: | 1,024mm X 1,024mm | Control Way: | Sychronous |
| Control System: | Linsn | Waterproof: | IP65 |
| Best Viewing Distance: | 8m - 80m | Warranty: | 2 Full Years |
| Highlight: | truck mounted led display,led truck advertising |
||
6500Nits LED Truck Advertising 4.096M X 2.048M 1R1G1B 3In1 HD LED Screen
Decription:
6,500nits P8 Outdoor HD and High Brightness 4.096m x 2.048m Full Color Truck Mounted Screen.
1. Screen size: 4.096m(W) x 2.048m(H)
2. Cabinet size: 1.024m(W) x 1.024m(H)
3. Cabinet quantity: 4pcs(W) x 2pcs(H)
2. Cabinet thinkness: 120mm
3. Best Viewing angle: H: 120º, V: 120º
4. Best viewing distance: 8m - 80m
Specification:
|
Pixel Pitch |
8mm |
|
Pixel Density |
15,625dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3535 |
|
Module Size |
256mm x 128mm |
|
Module Resolution |
16dots x 8dots |
|
Cabinet Size |
1,024mm x 1,024mm |
|
Cabinet Resolution |
128dots x 128dots |
|
Drive Duty |
1/4 Constant Current |
|
Brightness |
>6,500nits |
|
Viewing Distance |
8m - 80m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
1,000W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
| Waterproof | IP65 |
|
Cabinet Weight |
60kg |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Vehicle, truck, trailer, pickup car and etc mounted use for advertising

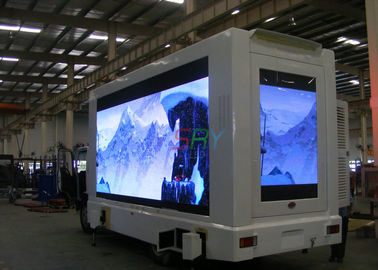

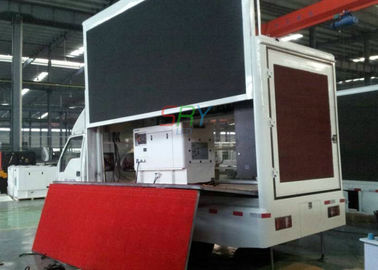

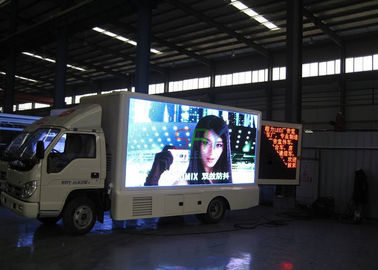

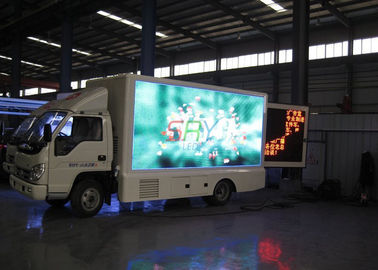

Application Pictures:
Competitive Advantages:
1. Low power consumption
2. Seamless splice design
3. Super slim cabinet design
4. Super light cabinet design
