Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Module Size: | 192mm X 192mm |
|---|---|---|---|
| Cabinet Size: | 576mm X 576mm | Cabinet Weight: | 15kg |
| Cabinet Color: | Blue | Cabinet Material: | Die - Casting Al |
| Certificate: | CE, LVD, RoHS | Warranty: | 2 Full Years |
| Highlight: | LED screen Cabinet,LED Cabinet |
||
Super Light P10 LED Display Cabinet 640mm x 640mm 100,000 Hours Life Span
Decription:
2. Working humidity: 10% - 95%.
3. Working temperature: -20ºc - +60ºc
4. Ave. power consumption: 250W/sqm
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10,000dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
DIP570 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Cabinet Size |
640mm x 640mm |
|
Cabinet Resolution |
64dots x 64dots |
|
Drive Duty |
1/4scan Constant Current |
|
Brightness |
>7,500nits |
|
Viewing Distance |
10m - 100m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 40A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
| Waterproof | IP65 |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
15kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Music concert, movie theaters, fitness halls, country clubs, clubs, massage rooms, bars,
cafes, Internet bars, beauty shops, golf course rental use.
Wedding cermony, party, news conference, exhibition and etc stage advertising use.

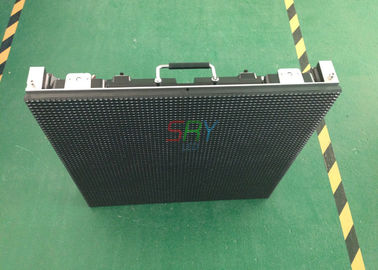

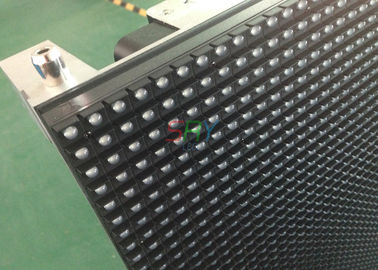

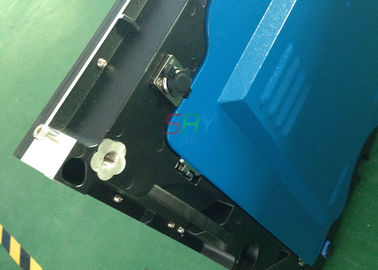

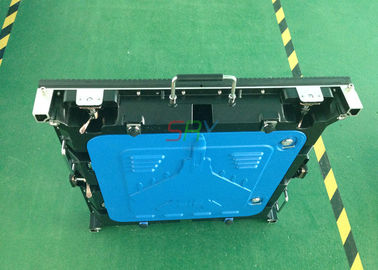

Cabinet Pictures:
Competitive Advantages:
1. No noise, low radiation
2. Fast and easy to install without tool
3. Super light & slim, seamless splice design
4. Energy-saving, environmental and low consumption design
