5mm Pixel Pitch Curved LED Panels 1/16 Scan Constant Current Commercial LED Displays

Large Image : 5mm Pixel Pitch Curved LED Panels 1/16 Scan Constant Current Commercial LED Displays

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY - IF - P5

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$750 - 800 / Square Meter
Packaging Details:	Wooden Case(wooden case size based on cabinet size and quantity, 2 cabinets in 1 wooden case)
Delivery Time:	10 - 12 Work Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	5mm	LED Encapsulation:	SMD3528
Module Size:	160mm X 160mm	Drive Duty:	1/16scan Constant Current
Brightness:	>1,600nits	Lifespan:	100,000hrs
Certificate:	CE, LVD, RoHS	Warranty:	2 Full Years
Highlight:	curved led display , curved led panels

5mm Pixel Pitch Curved LED Panels 1/16 Scan Constant Current Commercial LED Displays

Decription:

HD Indoor 5mm Pixel Pitch Full Color LED Display Screen Curved Use in Shopping Plaza. Indoor P5, high definition indoor series LED display. Also has a higher than 1,6w00nits brightness. Nowadays it enjoyes good market.

HD Indoor 5mm Pixel Pitch Full Color LED Display Screen Curved Use in Shopping Plaza. It overcomes the problems if the screen needs to be install on corner place.

Features:

1. Long viewing distance

Viewing distance: 5m - 50m

2. Large viewing angle

Viewing angle: H: 120°, V: 120°

3. Low power consumption

Ave. power cunsumption: 180W/sqm

4. Long lifespan

Surpass100,000 hours

Specificition:

Pixel Pitch	5mm
Pixel Density	40,000dots/sqm
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3528
Module Size	160mm x 160mm
Module Resolution	32dots x 32dots
Drive Duty	1/16scan Constant Current
Brightness	>1,600nits
Viewing Distance	5m - 50m
Viewing Angle	H: 120°, V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	500W/sqm
Ave. Power Consumption	180W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Operating Humidity	10% ~ 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Applies to showing characters, graphics, images, animations and videos in shopping plaza, wedding ceremony, brithday party, news conference, product launches and etc.

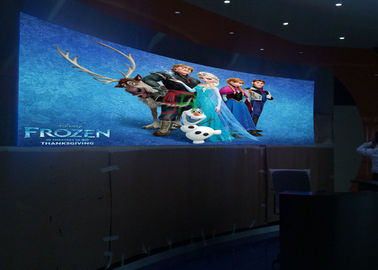

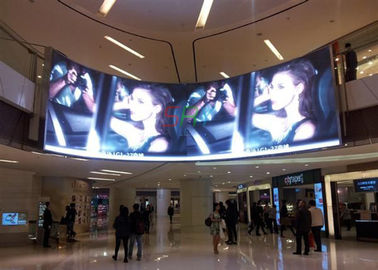

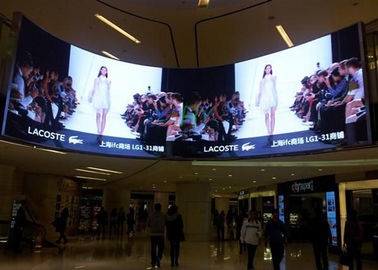

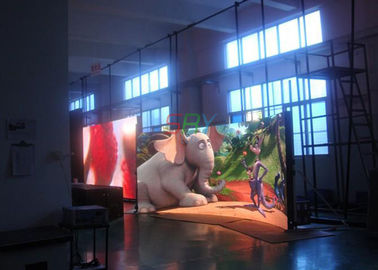

Applications Pictures:

5mm Pixel Pitch Curved LED Panels 1/16 Scan Constant Current Commercial LED Displays

Competitive Advantages:

1. Strong reliability

2. Easy maintenance

3. Light cabinet weight

4. Thin cabinet thickness

5. Low power consumption

6. Wider viewing angle
