Double Column 12mm LED Wall Display Screen 7500nits Outside Advertising Boards

Large Image : Double Column 12mm LED Wall Display Screen 7500nits Outside Advertising Boards

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY - OF - P12

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$ 720 - 760 / Square Meter
Packaging Details:	Wooden Case (1.06 x 0.50 x 1.26m，case size based on cabinet size, 2 cabinets in 1 wooden case)
Delivery Time:	10 - 12 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	3,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	12mm	LED Encapsulation:	DIP346
Drive Duty:	1/4 Constant Current	Module Size:	192mm X 192mm
Cabinet Size:	960mm X 960mm	Cabinet Color:	Grey, Black, White
Cabinet Weight:	45kg	Waterproof:	IP65
Highlight:	outdoor advertising LED display , outside advertising boards

Double Column 12mm LED Wall Display Screen 7500nits Outside Advertising Boards

Decription:

1. One square meter with 6,994dots pixels ensures P12 LED display screen high definition.

2. Brightness higher than 7,500cd/sqm ensures audiences could see the display screen clearly.

3. Waterproof: IP65 makes sure the display screen keep working in raining days.

4. Wide viewing angle: H: 120º, V: 70º .

Features:

1. Screen brightness: >7,500nits

2. Screen working humidity: 10% - 95%.

3. Screen working temperature: -20ºc - +60ºc.

4. Max. power consumption: 520W/sqm

Specificition:

Pixel Pitch	12mm
Pixel Density	6,944dots/sqm
Color Configuration	1R1G1B
LED Encapsulation	DIP346
Module Size	192mm x 192mm
Module Resolution	16dots x 16dots
Drive Duty	1/4 Constant Current
Brightness	>7,500nits
Viewing Distance	12m - 120m
Viewing Angle	H: 120°, V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	520W/sqm
Ave. Power Consumption	140W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof	IP65
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Business Organizations

Supermarket, large-scale shopping malls, exclusive agency, chain shops,

largescale sales, starrated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital,

schools;

Public Places

Subway, airports, stations, gas stations, toll stations, bookstores, parks,

exhibition halls, stadiums, museums, convention centers, ticket agencies,

HR market, lottery centers; Real Estate Property: Apartments, villas,

offices, commercial buildings, model rooms, property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars,

cafes, Internet bars, beauty shops, golf course

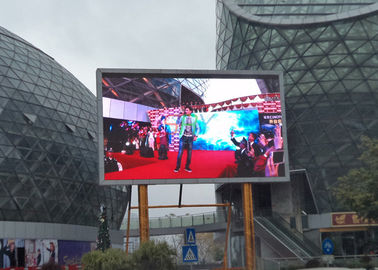

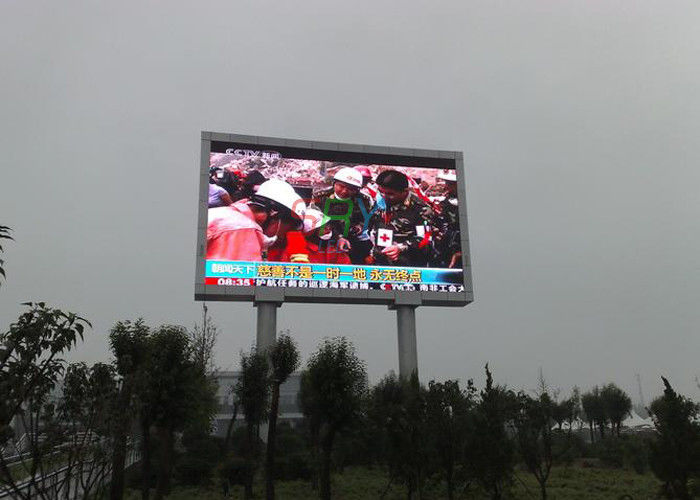

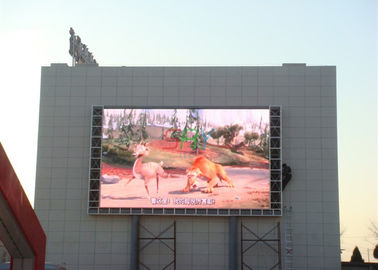

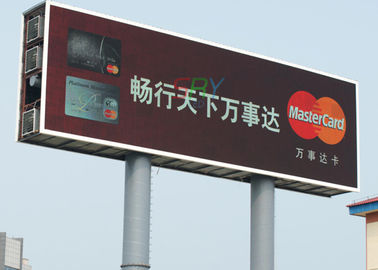

Application Pictures:

Double Column 12mm LED Wall Display Screen 7500nits Outside Advertising Boards

Competitive Advantages:

1. CE, LVD, RoHS certified, 2 full years warranty.

2. Longlife span, energy-saving design and lower power consumption.

3. High brightness, high definition, wider viewing angle. Waterproof IP: 65.
