Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Color Configuration: | 1R1G1B 3in1 |
|---|---|---|---|
| LED Encapsulation: | SMD2727 | Module Size: | 320mm X 160mm |
| Module Weight: | 0.45kg | Cabinet Size: | 640mm X 800mm |
| Cabinet Weight: | 25kg | Warranty: | 2 Full Years |
| Highlight: | outdoor advertising LED display,outside advertising boards |
||
High Brightness 5mm Outdoor Full Color Led Display Screen In Aging Process
Decription:
5mm Outdoor Full Color LED Display in Aging Process, High Brightness LED Display Screen. Using outdoor high brightness SMD2727 LED lamp to makes sure 6,500nits brightness.
3. Energy saving design
Max. power consumption: 1400W/sqm
Ave. power consumption: 435W/sqm
4. Great heat disspation design
Specification:
|
Pixel Pitch |
5mm |
|
Pixel Density |
40,000dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD2727 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
64dots x 32dots |
|
Cabinet Size |
640mm x 800mm |
|
Cabinet Resolution |
128dots x 160dots |
|
Drive Duty |
1/8 Constant Current |
|
Brightness |
>6,500nits |
|
Viewing Distance |
5m - 50m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 40A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
1,400W/sqm |
|
Ave. Power Consumption |
435W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
| Waterproof | IP65 |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
25kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Widely using for supermarket, shopping plaza, stadium, hotel and train station and etc.

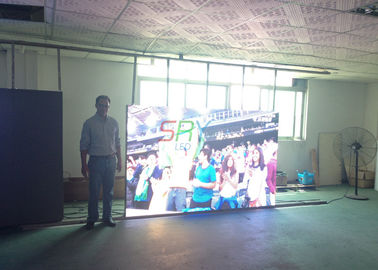

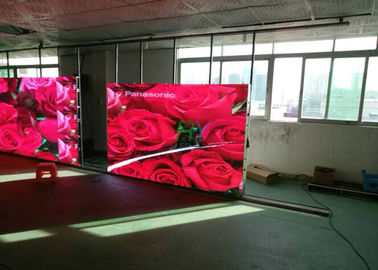

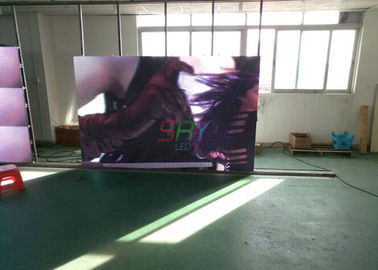

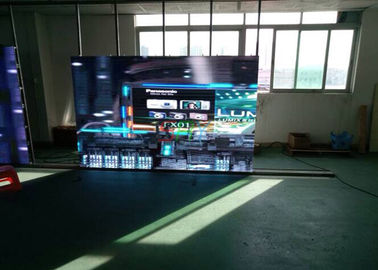

Pictures:
Competitive Advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. 24hours per 7 days, 2 full years warranty.
3. fast installation and easy to install.
