P5 Indoor Blue Color Pulled Aluminum LED Cabinet Rental Use 640mm x 640mm

Large Image : P5 Indoor Blue Color Pulled Aluminum LED Cabinet Rental Use 640mm x 640mm

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRYLED - IFC - P5

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$ 850 - 950 / Square Meter
Packaging Details:	Flight Case (Flight case size depend on cabinet quantity)
Delivery Time:	10 - 12 Work Days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	5mm	Color Configuration:	1R1G1B 3in1
LED Encapsulation:	SMD3528	Cabinet Size:	640mm X 640mm
Cabinet Weight:	12kg	Cabinet Color:	Blue(Optional)
Cabinet Material:	Pulled Aluminum	Warranty:	2 Full Years
Highlight:	LED screen Cabinet , LED Cabinet

P5 Indoor Blue Color Pulled Aluminum LED Cabinet Rental Use 640mm x 640mm

Decription:

P5 Indoor Blue Color 640mm x 640mm Pulled Aluminum LED Cabinet, Rental Use. Pulled aluminum cabinet design, makes it easy and fast to install.

Features:

1. High flatness precision: with die-cast aluminum technology, the tolerance of cabinet and module are controlled within 0.1mm, screen flatness and split joint gap are controlled within 0.3mm.

2. Beautiful appearance: humanized arc handle design, it's a perfect show of technology and art.

3. High heat stability: great heat dissipation design, with heat conduction rubber, PCB aluminum casing and dissipation system.

4. High-end display effect: high refresh, high gray scale, high color contrast, and high quality picture effect.

5. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.

6. Easy maintenance: each module can be dismantled and installed without taking out power, system card and any other components.

7. High color consistency and contrast: The module mask is designed with rubber material, no screws needed, high color contract and flatness.

Specification:

Pixel Pitch	5mm
Pixel Density	40,000dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3528
Module Size	320mm x 160mm
Module Resolution	64dots x 32dots
Cabinet Size	640mm x 640mm
Cabinet Resolution	128dots x 128dots
Drive Duty	1/16 Constant Current
Brightness	>1,800nits
Viewing Distance	5m - 50m
Viewing Angle	H: 120°, V:120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	800W/sqm
Ave. Power Consumption	270W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Cabinet Weight	12kg
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

Pictures:

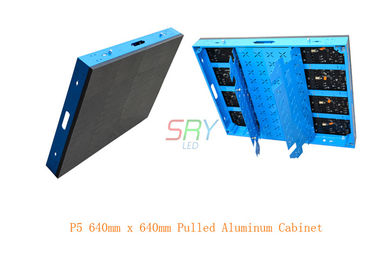

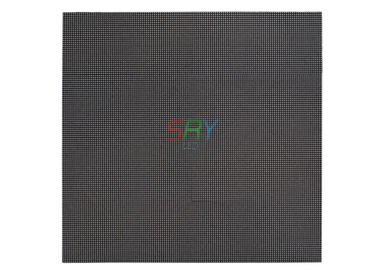

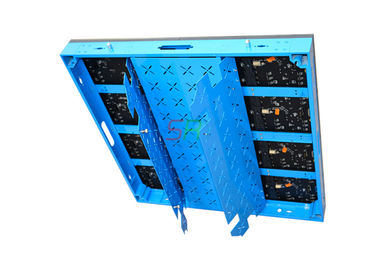

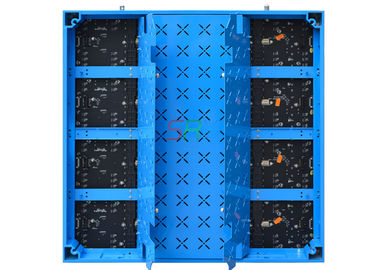

P5 Indoor Blue Color Pulled Aluminum LED Cabinet Rental Use 640mm x 640mm

Competitive Advantages:

1. Vivid and brilliant color, sharp and smooth images.

2. Superb performance/price ratio solution for rental market.

3. 24/7 professional after sales service, and on-site service is available.

4. Plug & Play, No tools, 10 Seconds for one panel installation / dismantle.

5. One set cabinet structure is compatible with various pixel pitches, easily have another new screen by
changing LED module.

6. Support different shapes installation: Flat and curved ,create infinite stage styles.
