Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Cabinet Size: | 960mm X 960mm |
|---|---|---|---|
| Cabinet Weight: | 40kg | Cabinet Color: | Black |
| Cabinet Material: | Stainless Steel | Waterproof: | IP65 |
| Lifespan: | 100,000hrs | Certificate: | CE, LVD, RoHS |
| Highlight: | LED screen Cabinet,LED Cabinet |
||

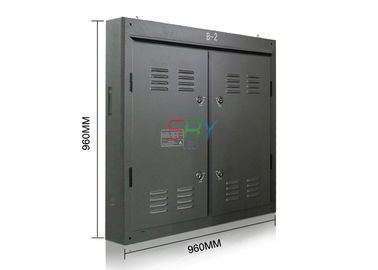

5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness
Decription:
Waterproof 5mm Outdoor Full Color 960mm x 960mm LED Display Cabinet, High Brightness. Brightness can be higher than 6,500nits.
Specification:
| Pixel Pitch | 5mm |
| Pixel Density | 40,000dots/sqm |
| Tube Chip Color | Full Color |
| Color Configuration | 1R1G1B 3in1 |
| LED Encapsulation | SMD2727 |
| Cabinet Size | 960mm x 9600mm |
| Cabinet Resolution | 192dots x 192dots |
| Cabinet Weight | 40kg |
| Drive Duty | 1/8Constant Current |
| Brightness | >6,500nits |
| Viewing Distance | 5m - 50m |
| Viewing Angle | H: 120°, V: 120° |
| Refresh Rate | 2,000HZ |
| Frame Rate | 120frame/sec |
| Grey Grade | 256levels of Each Color |
| Color Grade | 16.7M |
| Power Input | AC220V (110V) ±15%, 47 - 64HZ |
| Max Power Consumption | 1,400W/sqm |
| Ave. Power Consumption | 460W/sqm |
| Storage Temperature | -40℃ - +80℃ |
| Working Temperature | -20℃ - +60℃ |
| Blind Spot Rate | <1/10,000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Control System | Synchronous, Asynchronous |
| Operating System | Win 98, Win2000, XP, 07.etc |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
| Certificate | CE, LVD, RoHS |
Application:
Widely using for music concert, theater, stadium, showroom, stage, fitness room, monitoring room and etc.

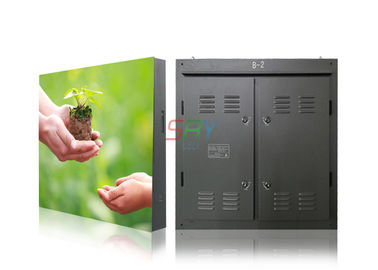

Pictures:
Competitive Advantages:
1. Anti-damage design:
Special anti-damage design on cabinit structure can reduce damage on led lamps and modules during insallation.
2. Mixed-use available:

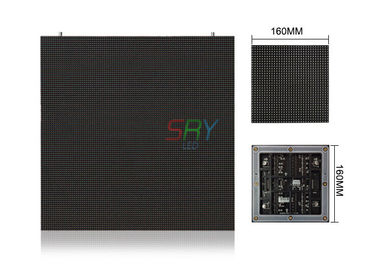

Can be also used for other 160mm x 160mm modules.
3. Light weight and slim:
The thickness of each cabinet less than 100mm,only 40kg/cabinet.
4. Smart and Simple
No internal connection cables can deliver a much more stable performance.
