Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3mm | Cabinet Size: | 576mm X 576mm |
|---|---|---|---|
| Cabinet Weight: | 8kg | Cabinet Color: | Customized |
| Cabinet Material: | Pulled Aluminum | Waterproof: | IP31 |
| Lifespan: | 100,000hrs | Certificate: | CE, LVD, RoHS |
| Highlight: | stage background LED screen,Led Stage Curtain Screen |
||
Pulled Aluminum 3mm LED Digital Signage / Full Color LED Display Cabinet
Decription:
Energy - saving Designed Pulled Aluminum Cabinet, Indoor Stage 3mm Full Color LED Display.
Specification:
| Pixel Pitch | 3mm |
| Pixel Density | 111,111dots/sqm |
| Tube Chip Color | Full Color |
| Color Configuration | 1R1G1B 3in1 |
| LED Encapsulation | SMD2121 |
| Module Size | 192mm x 192mm |
| Cabinet Size | 576mm x 576mm |
| Cabinet Resolution | 192dots x 192dots |
| Cabinet Weight | 8kg |
| Drive Duty | 1/16 Constant Current |
| Brightness | >1,500nits |
| Viewing Distance | 3m - 30m |
| Viewing Angle | H: 120°, V: 120° |
| Refresh Rate | 2,000HZ |
| Frame Rate | 120frame/sec |
| Grey Grade | 256levels of Each Color |
| Color Grade | 16.7M |
| Power Input | AC110V/ 220V ±10%, / 50HZ |
| Max Power Consumption | 360W/sqm |
| Ave. Power Consumption | 180W/sqm |
| Storage Temperature | -40℃ - +80℃ |
| Working Temperature | -20℃ - +60℃ |
| Blind Spot Rate | <1/10,000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Control System | Synchronous, Asynchronous |
| Operating System | Win 98, Win2000, XP, 07.etc |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
| Certificate | CE, LVD, RoHS |
Application:
Widely using for advertising media, sports stadiums, airport station integrated information dissemination, business establishments, public area.

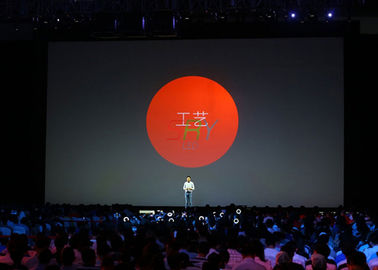

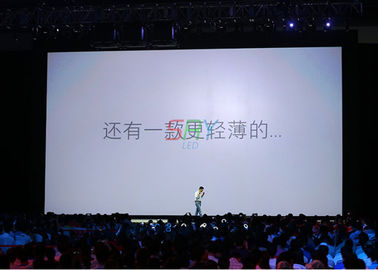

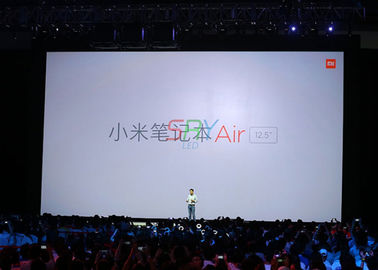

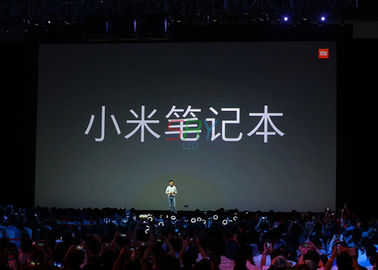

Pictures:
Competitive Advantages:
1. Light weight and slim:
The thickness of each cabinet less than 80mm,only 8KG/cabinet.
2. Mixed-use available:
Two different cabinet sizes:576mm x 576mm,they are compatible vertically with each other,which can mixed-use for one big screen.
3. Time-saving:
Each cabinet measures 576mm x 576mm ensuring assembly and disassembly twice faster.
4. Smart and Simple:
No internal connection cables can deliver a much more stable performance.
5. Anti-damage design:
Special anti-damage design on cabinit structure can reduce damage on led lamps and modules during insallation.
