NovaStar Full Color Controller MCTRL660 Sending Box Cascade Support Controller
Overview
MCTRL660 is the latest independent master controller of NovaStar, which is mainly applied for display rental service. It supports screen configuration at any time without a computer.
Feature
1) It has adopted an innovative design to implement smart configuration and the screen configuration can be completed within 30 seconds;
2) It has adopted Nova G4 engine, which makes the screen stable and flicker free without scanning lines. The images become exquisite and bring a good sense of depth;
3) It supports Nova's new-generation pixel-by-pixel calibration technology which is fast and efficient;
4) It can implement white balance calibration and color gamut mapping based on different features of LEDs used by displays to ensure restoration of true colors;
5) It is the only control system supporting the input of 12-bit high-definition multimedia interface (HDMI) and high-bandwidth digital content protection (HDCP) in China;
6) It supports screen configuration at any time without a computer;
7) It supports manual adjustment of screen brightness, which is convenient and efficient. These features have satisfied the special needs of display rental service to the maximum extent;
8) HDMI/DVI Input;
9) HDMI/DVI Output;
10) HDMI/external audio input;
11) 12bit/10bit/8bit HD video source;
12) Resolution supported: 2048 x 1152,1920 x 1200,2560 x 960;
13) Resolution supported: 1440 x 900,(12 bit/10 bit);
14) Cascading supported;
15) 18 bit gray scale processing and presentation;
16) Video format: RGB, YCrCb4:2:2, YCrCb4:4:4.

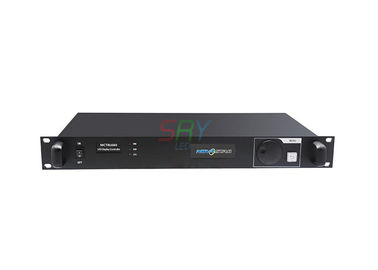

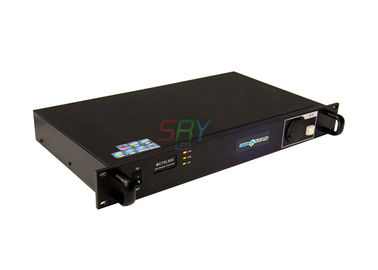

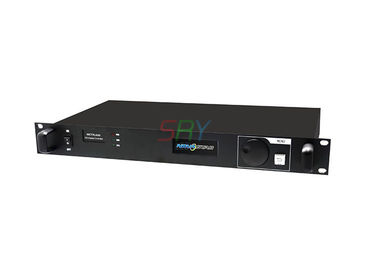

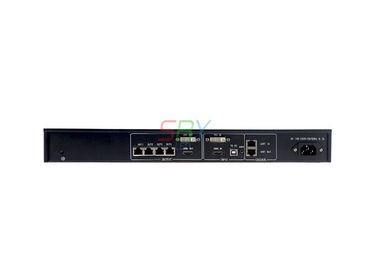

Product Picture:
