Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 16mm | LED Encapsulation: | DIP546 |
|---|---|---|---|
| Drive Duty: | Static Constant Current | Module Size: | 320mm X 160mm |
| Cabinet Size: | 1,280mm X 960mm | Cabinet Color: | Grey, Black, White |
| Cabinet Weight: | 60kg | Waterproof: | IP65 |
| Highlight: | Stadium LED Display,Perimeter Led Screen |
||
Outdoor Super Bright 6000nits sport LED display Full Color Pixel Pitch 20mm
Decription:
3. Waterproof: IP65 makes sure the display screen keep working in raining days.
4. Wide viewing angle: H: 120º, V: 70º .
1. Half spherical soft covers on the top and front surface of display provide safe guarantee to athlete;
2. The connection between cabinets and brackets is a fold-and-unfold block and tackle. This is a tight and advanced connection which can keep all cabinets consistent on one level;
3. Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining;
4. With the special removable brackets on the back side of the cabinets, the gradient of display screen could be adjusted easily. These cabinets could also be used for hanging mounting and fixed mounting after removing the brackets;
5. High refresh frequency, high grey level, and no dithering while displaying videos, can be used for live TV program, and The pixel correction technology is available;
6. Sub-screen function of the software realizes multi-window display of the complete screen and is able to show images, text, clock and game score and broadcast live show;
Specificition:
|
Pixel Pitch |
20mm |
|
Pixel Density |
2,500dots/sqm |
|
Color Configuration |
2R1G1B |
|
LED Encapsulation |
DIP546 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
16dots x 8dots |
|
Drive Duty |
Static Constant Current |
|
Brightness |
>6,000nits |
|
Viewing Distance |
20m - 200m |
|
Viewing Angle |
H: 120°, V: 70° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |

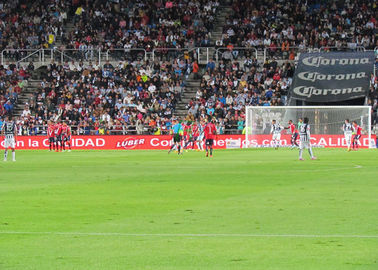

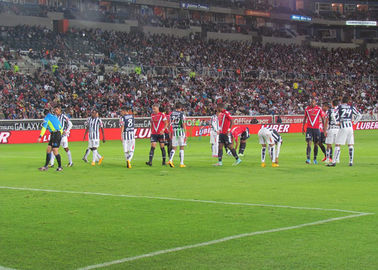

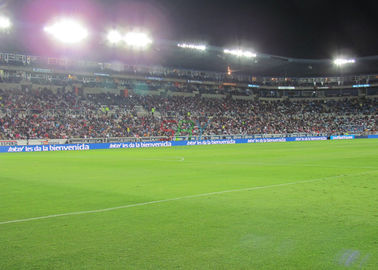

Application Pictures:
Our Pre-sale Service:
1. Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
2. Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
3. Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
4. Site instruction service of installation is available.
5. Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
6. Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.
7. Spare parts: necessary spare parts are provided together with products to customers.
