Product Details:
Payment & Shipping Terms:
|
| Module Size: | 160mm X 160mm | Cabinet Size: | 960mm X 960mm |
|---|---|---|---|
| Control System: | Linsn | Best Viewing Distance: | 10m - 100m |
| Warranty: | 2 Full Years | Viewing Angle: | H: 120°, V:70° |
| Highlight: | truck mounted led display,led truck advertising |
||
DIP346 Truck Mounted LED Screen , mobile billboard trucks Light weight
Decription:
1. Light weight and slim design, 45kg/cabinet, cabinet size is 960mm x 960mm
2. Quick and easy, 10 seconds for assembling 2 cabinets without any tools
3. Die casting aluminum cabinet design, saves 40% steel structure
4. Hollow design, wind resistant and great heat dissipation
5. Outdoor and indoor cabinets and modules are compatible with each other
1. Easy maintenance, front and rear maintenance are available
2. Widely application area, such as main screen, side screen, floor screen curved screen
3. Floor screen can bear 1 ton of weight and IP 65 protection level
4. Energy saving and environmental friendly
5. Capability to control the gap between cabinets
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10,000dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B |
|
LED Encapsulation |
DIP346 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
16dots x 16dots |
|
Cabinet Size |
960mm x 960mm |
|
Cabinet Resolution |
96dots x 96dots |
|
Drive Duty |
1/4 Constant Current |
|
Brightness |
>7,500nits |
|
Viewing Distance |
10m -100m |
|
Viewing Angle |
H: 120°, V:70° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
| Waterproof | IP65 |
|
Cabinet Weight |
45kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Vehicle, truck, trailer, pickup car and etc mounted use for advertising

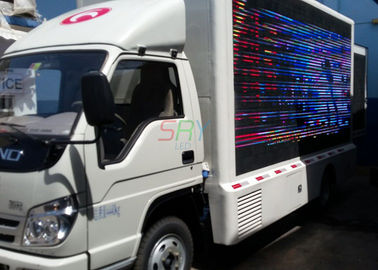

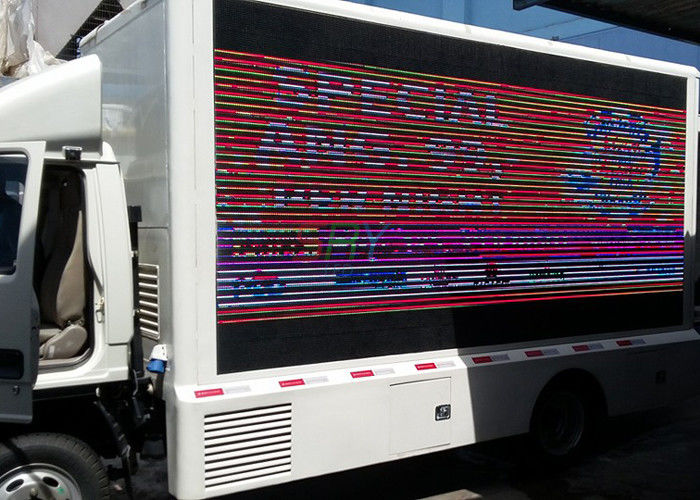

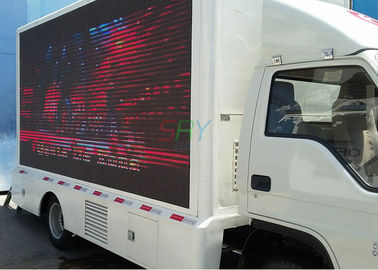

Application Pictures:
