| Input Voltage: | AC 110V - 220V ±15%, 50HZ | Cabinet Material: | Aluminum |
|---|---|---|---|
| Waterproof: | IP65 | Cabinet Size: | 800mm X 800mm |
| Cabinet Weight: | 50kg | Lifespan: | >100,000hours |
| Warranty: | 2 Full Years | Certificate: | CE, LVD, RoHS |
| Highlight: | curved led display,curved led panels |
||
Full Color P10 16 bit Ture Color 1R1G1B led screen / Curved LED Display Good Performance
Decription:
As the development of the LED display technology, the display shape is changing greatly, Curve LED Display is one of them. Its biggest advantage is to enlarge the viewing angle, which makes it be very suitable to install at the crossroads and building corner.
1. Mainly be used for indoor and outdoor advertising, and outdoor wall decoration.
2. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens etc.
3. Curve degrees can be adjusted accordingly to different requests of architectural design.
4. Extremely narrow gap between modules contributes to clear image and smooth transition between modules without interval.
5. Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining;
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10,000dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B |
|
LED Encapsulation |
DIP346 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
16dots x 16dots |
|
Cabinet Size |
800mm x 800mm |
|
Cabinet Resolution |
80dots x 80dots |
|
Drive Duty |
1/4 Constant Current |
|
Brightness |
>7,500nits |
|
Viewing Distance |
10m - 100m |
|
Viewing Angle |
H: 120°, V:70° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V - 220V ±15%, 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
50kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Widely using for theater, stadium, showroom, stage, monitoring room and etc.

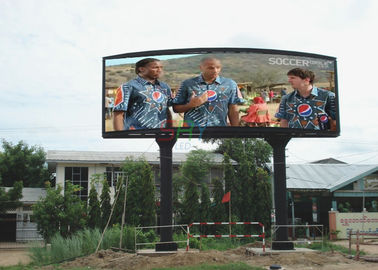

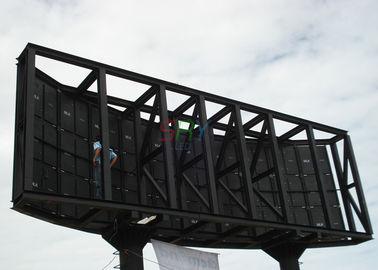

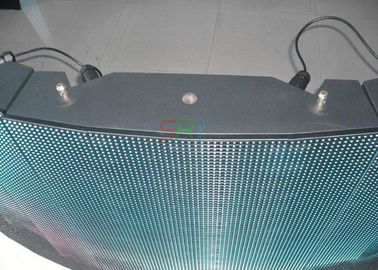

Pictures:
Competitive Advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. Plug and play, without tools to install / uninstall one cabinet in 6s.
3. One set cabinet structure is compatiable with various pixel pitches module.
4. Superb performance / price ratio solution for rental market.
5. 2 full years warranty. 24hours/week on-line service.
