Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 16mm | LED Encapsulation: | DIP546 |
|---|---|---|---|
| Drive Duty: | Static Constant Current | Module Size: | 256mm X 256mm |
| Cabinet Size: | 1,024mm X 1,024mm | Cabinet Color: | Grey, Black, White |
| Cabinet Weight: | 65kg | Waterproof: | IP65 |
| High Light: | Stadium LED Display,Perimeter Led Screen |
||
Sport Perimeter LED Display Screen P16 DIP 2R1G1B Outdoor Video LED Perimeter Display for Advertising
Decription:
1. Based on high brightness, wide viewing angles and stunning picture quality, perimeter display is specially designed for large sports arenas application with exceptional performance.
2. The extreme durability and new safety features enable HBC's perimeter display appear to most famous sport arenas worldwide. This state-of-the-art LED perimeter display also boasts a modular, lightweight design with an adjustable stand, creating it even more flexible.
3. Accident-free: front surface to protect athletes from injuries; top part with a special soft protection. Angled LED configuration with tilted foot system for multiple setup scenarios, striking a perfect balance between live audiences and broadcast camera.
4. Multiple uses as both perimeter system and commercial display when stacked.
5. Refresh rate up to 4,200 Hz, ideally for live event broadcasting.
6. High reliability with the data hot backup, to avoid any communication risks during the game.
7. User friendly: 2G bandwidth, less controllers are needed for the exceptional length
1 .Full color by filling the whole of imported silica gel, which makes our products in water, antifreeze, superior high-temperature side
2 .After a dust-proof and waterproof tested to reach its target IP65
3 All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.

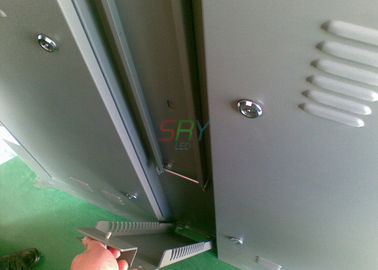

4.the box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the box. Plesse do not squeeze the entire screen which ensure good surface smoothness.
5. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test,the results showed that: outdoor full color display can use the power normally under the temperature at -20 °C to +60 °C
6. Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places
Specificition:
|
Pixel Pitch |
16mm |
|
Pixel Density |
3,906dots/sqm |
|
Color Configuration |
2R1G1B |
|
LED Encapsulation |
DIP546 |
|
Module Size |
256mm x 256mm |
|
Module Resolution |
16dots x 16dots |
|
Drive Duty |
Static Constant Current |
|
Brightness |
>8,000nits |
|
Viewing Distance |
16m - 160m |
|
Viewing Angle |
H: 120°, V: 70° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
1,600W/sqm |
|
Ave. Power Consumption |
400W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |

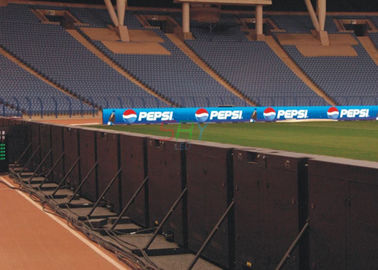

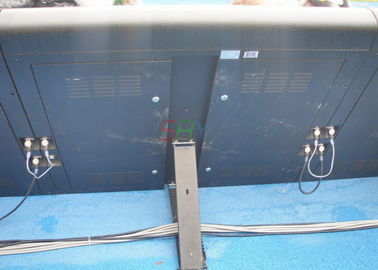

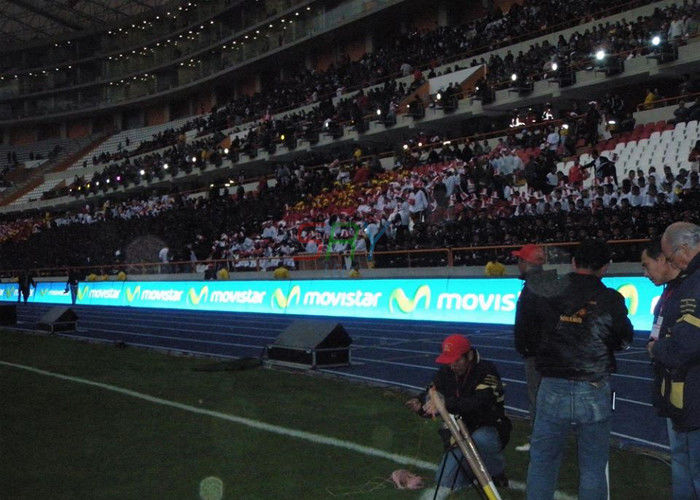

Application Pictures:
Competitive Advantages:
1. 24/7 Online support service
2. Free onsite maintenance / Year
3. Solution design
4. Free online training any time
5. High quality raw material used like neutrik flight connector, MBI IC etc.
