Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | LED Encapsulation: | SMD3528 |
|---|---|---|---|
| Module Size: | 192mm X 192mm | Drive Duty: | 1/16scan Constant Current |
| Cabinet Material: | Die - Casting Aluminum | Cabinet Size: | 576mm X 576mm |
| Lifespan: | 100,000hrs | Certificate: | CE, LVD, RoHS |
| High Light: | stage background LED screen,Led Stage Curtain Screen |
||
Light Weight Indoor LED Display Sign 576MM X 576MM LED Screen Stage Backdrop
Decription:
Indoor environment is a dark occasion, for 1/16scan P6 its whole screen brightness is higher than 3,000nits. It is a better choice than 1/8scan P6. And its price is moer practical.
2. Cabinet thinkness: 70mm
3. Viewing angle: H: 120º, V: 120º
4. Whole screen brightness: >3,000nits
Specification:
|
Pixel Pitch |
6mm |
|
Pixel Density |
27,777dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3528 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Cabinet Size |
576mm x 576mm |
|
Cabinet Resolution |
96dots x 96dots |
|
Drive Duty |
1/16 Constant Current |
|
Brightness |
>1,500nits |
|
Viewing Distance |
6m - 60m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V-20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
420W/sqm |
|
Ave. Power Consumption |
140W/sqm |
|
Storage Temperature |
-40℃~+80℃ |
|
Working Temperature |
-20℃~+60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
9kg |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Big music concert, movie theater, fitness hall, country club, wedding ceremony, brithday ceremony, meeting room, stage shows, exhibitions and etc.

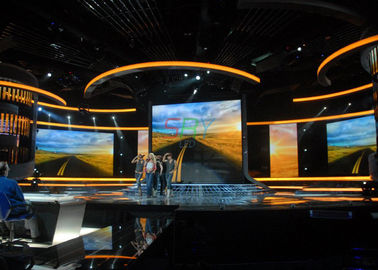

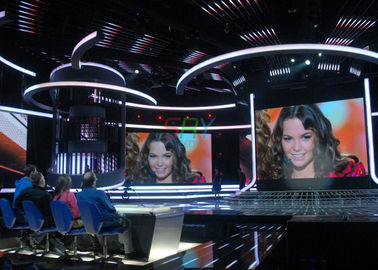

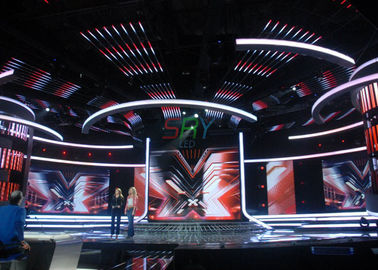

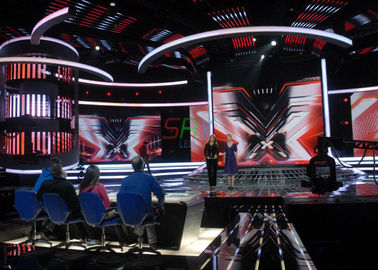

Application Pictures:
Competitive Advantages:
1. High definition, high brightness and high refresh.
2. CE, LVD, RoHS certified, two full years warranty.
3. High quality, competitive price and best post-sale service.
4. Longlife span, energy-saving design and lower power consumption.
