Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stadium Led Display | Size Of Panel: | 1024mm X 1024mm |
|---|---|---|---|
| Brightness: | 8000cd/sqm | Led Brand: | Epistar |
| Application: | Stadium | Resolution: | 64 X 64 |
| Weight: | 55KG | Waterproof: | IP65 |
| High Light: | Perimeter Led Screen,stadium advertising boards |
||
Description:
1. High Brightness
8000nit, P16 stadium led display can be seen clearly under sunlight.
2. Waterproof
P16 stadium led display waterproof is IP65, which ensure products can be used in heavy rainy weather.
3. Static Drive Method
P16 stadium led display drive method is static, its video and image visual effect is very good.
4. Many Types Of Cabinets
SRY P16 advertising led screen can be designed to many types, such as front service cabinet, double side cabinet, curved led cabinet, led ball and other shapes.
Feature:
1. High brightness and can be adjusted, so can meet the request of the customers according the application environment.
2. Flat screen, no gap. Cabinets were made by high-precision molding plastic injection, no slit on the screen.
3. Specific and targeted installation means fast setup and fast dismantling.
4. Advanced pixel correction for the sharpest image quality.
Specification:
|
Pixel Pitch |
16mm |
|
Pixel Density |
3906dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
DIP346 |
|
Module Size |
256mm x 256mm/ 256mm x 128mm |
|
Module Resolution |
16dots x 16dots/ 16dots x 8 dots |
|
Drive Mode |
Static, Constant Current |
|
Brightness |
>8000cd/sqm |
|
Viewing Distance |
16m-160m |
|
Viewing Angle |
H: 120°; V:120° |
|
Interface |
Hub75 |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1000W/sqm |
|
Ave. Power Consumption |
400W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
PC Display Resolution |
1280x1024 |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
|
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, star-rated hotels, restaurants, travel agencies |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
subway, airports, stations, gas stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, commercial buildings, meeting rooms |
|
Entertainments |
Movie theaters, clubs, bars, stages |
Competitive Advantage:
1) we have our own developing and designing team, which ensure our own technological and innovative product for customers.
2) For any customers who have new idea about some products ,just let us know,we can according to your idea provide a unique design of the products.
3) 2 years warranty, more than 10 years life.
4) our working team and sales teams can guarantee a fast and high efficiency after-sales service of our product sold to everywhere of the global.
5) Within 7-15 days, the led display can be sent to you after your payment. Fast delivery time
6) If necessary, our engineers can be sent to your country to assist you to solve all problem.
7) 1% spare parts.( such as led display module, power supply, data cable, power cable)

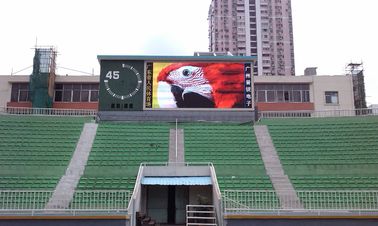

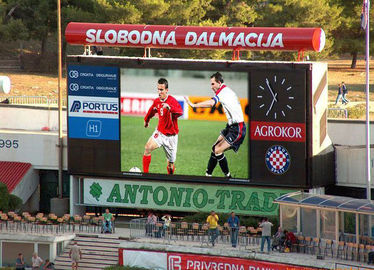

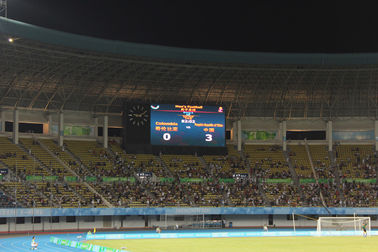

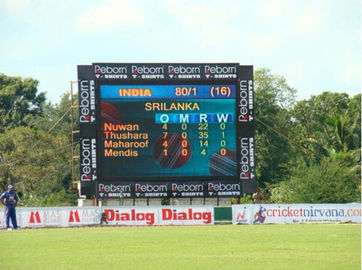

Product Images:
