| Product Name: | Stadium Led Display Scoreboard | Size Of Panel: | 1024mm X 1024mm |
|---|---|---|---|
| Module Size: | 256mm X 256mm | Application: | Basketball And Football Stadium |
| Cabinet Weight: | 55KG/pcs | Waterproof: | IP65 |
| Drive Method: | Static | Brightness: | 8000 Nit |
| High Light: | Stadium LED Display,Perimeter Led Screen |
||
Outdoor IP65 Stadium Perimeter LED Display , LED Display Scoreboard For Basketball
Description:
1. High Brightness
8000nit, P16 stadium led display can be seen clearly under sunlight.
2. Waterproof
P16 stadium led display waterproof is IP65, which ensure products can be used in heavy rainy weather.
3. Static Drive Method
P16 stadium led display drive method is static, its video and image visual effect is very good.
4. Scoring
P16 stadium led display scoreboard can scoring for each competition, it will show time, team name, score etc.
Feature:
1. High Quality , competitive price
2. Excellent waterproof , dustproof and antirust features
3. High refresh rate assured perfect image
4. Quite fit for indoor and outdoor court applying
Specification:
|
Pixel Pitch |
16mm |
|
Pixel Density |
3906dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
DIP346 |
|
Module Size |
256mm x 256mm |
|
Module Resolution |
16dots x 16dots |
| Cabinet Size | 1024mm x 1024mm |
|
Drive Mode |
Static, Constant Current |
|
Brightness |
>8000cd/sqm |
|
Viewing Distance |
16m-160m |
|
Viewing Angle |
H: 120°; V:120° |
|
Interface |
Hub75 |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1000W/sqm |
|
Ave. Power Consumption |
400W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
PC Display Resolution |
1280x1024 |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:

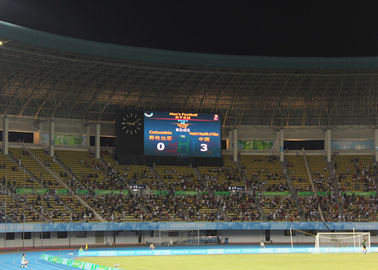

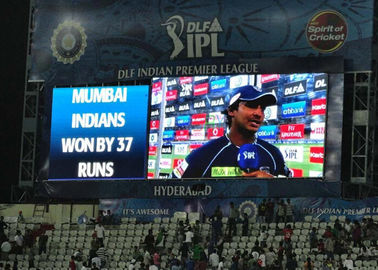

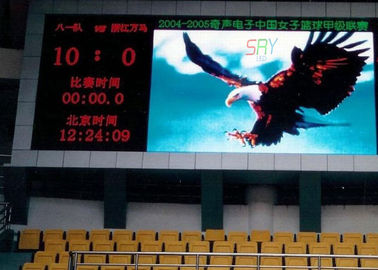

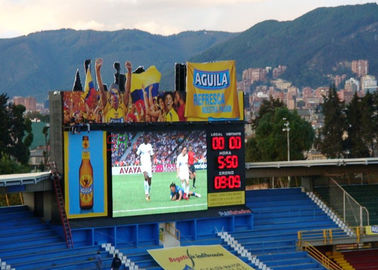

P16 stadium led display scoreboard is perfect for various sports stadium, such as swimming pool, basketball court, football field, hockey field, rugby filed etc.
Competitive Advantage:
1) we have our own developing and designing team, which ensure our own technological and innovative product for customers.
2) For any customers who have new idea about some products ,just let us know,we can according to your idea provide a unique design of the products.
3) 2 years warranty, more than 10 years life.
4) our working team and sales teams can guarantee a fast and high efficiency after-sales service of our product sold to everywhere of the global.
5) Within 7-15 days, the led display can be sent to you after your payment. Fast delivery time
6) If necessary, our engineers can be sent to your country to assist you to solve all problem.
7) 1% spare parts.( such as led display module, power supply, data cable, power cable)
