Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 16mm | Size Of Panel: | 1024mm X 1024mm |
|---|---|---|---|
| Module Size: | 256mm X 256mm | Application: | Football / Soccer Field |
| Usage: | Advertising | Waterproof: | IP65 |
| Drive Method: | Static , Constant Current | Brightness: | 8000 Nit |
| High Light: | Stadium LED Display,Perimeter Led Screen |
||
DIP346 Advertising Sport LED Display 16mm Football Pitch Advertising Boards
Description:
1, Humanization Design
With special soft module mask and cabinet cover, it can protect the players from being hurt during the match.
2, Independent Ground Support Structure, More Stable than You Think
The angle of the ground support structure can be adjusted as you need, to suit the best viewing angle for audience and cameras.
3, Three-high Design and Excellent Visual Effect for Live Video
High refresh rate up to 4000Hz, no scanning line and color patch by HD camera;
High grey scale up to 16 bit, making the image vivid and sharp;
High brightness up to 8000 nits, making the image clear enough even in the sun directly.
4, High IP Rating Suited for Outdoor Use
High IP Rating Suited for Outdoor Use.
The professional aviation connectors enable multiple plug and unplug, and it’s full waterproof. It ensures the stable and reliable of the screen especially in some important occasions.
Features:
1, Automatic backup system
Our LED Displays could utilize two computers to ensure interruption free display of images and videos.
For instance, if one unit was to shutdown due to technical issues, the other unit acts as a backup
solution automatically.
2, Convenient to install and disassemble
Our Sport LED Display cabinets feature simple designs, making them easy-to-install and disassemble. The cabinets include interlocks, as well as external signal and power plugs.
3, Adjustable inclination angle
Generally, the LED perimeter displays are placed vertically and the inclination angle is adjustable for the best possible viewing and cameras shooting angles.
Specification:
Pixel Pitch | 16mm |
Pixel Density | 3906dots/sqm |
Color Configuration | 1R1G1B |
LED Package | DIP346 |
Module Size | 256mm x 256mm |
Module Resolution | 16dots x 16dots |
| Cabinet Size | 1024mm x 1024mm |
| Cabinet Weight | 60KG/pcs |
Drive Mode | Static, Constant Current |
Brightness | >8000cd/sqm |
Viewing Distance | 16m-160m |
Viewing Angle | H: 120°; V:120° |
Interface | Hub75 |
Refresh Rate | 4000HZ |
Frame Rate | 120frame/sec |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 1000W/sqm |
Ave. Power Consumption | 400W/sqm |
Storage Temperature | -40℃~+85℃ |
Working Temperature | -20℃~+65℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof | IP65 |
Operating Humidity | 10%~95% |
Control Method | Synchronous, LINSN, NOVA |
PC Display Resolution | 1280x1024 |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 etc |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Applications:
P16 stadium led display scoreboard is perfect for various sports stadium, such as swimming pool, basketball court, football field, hockey field, rugby filed etc.
Competitive Advantage:
1) New soft module mask and cabinet protection pad.
2) 2 years warranty, more than 10 years life.
3) Within 7-15 days, the led display can be sent to you after your payment. Fast delivery time
4) If necessary, our engineers can be sent to your country to assist you to solve all problem.
5) 1% spare parts.( such as led display module, power supply, data cable, power cable)

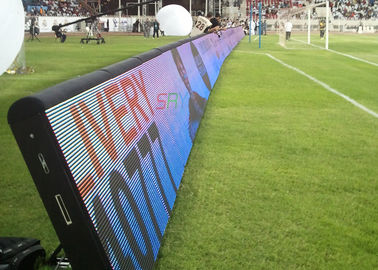

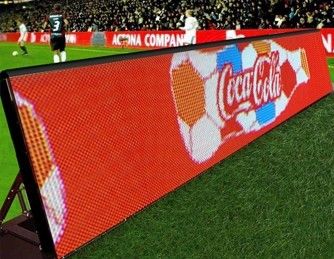

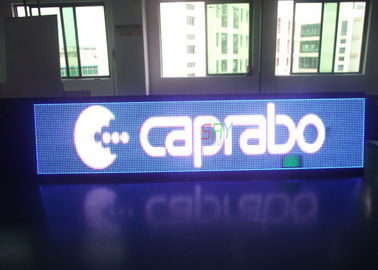

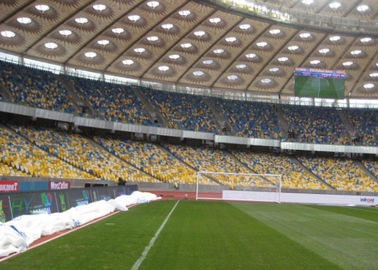

Product Images:
