3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

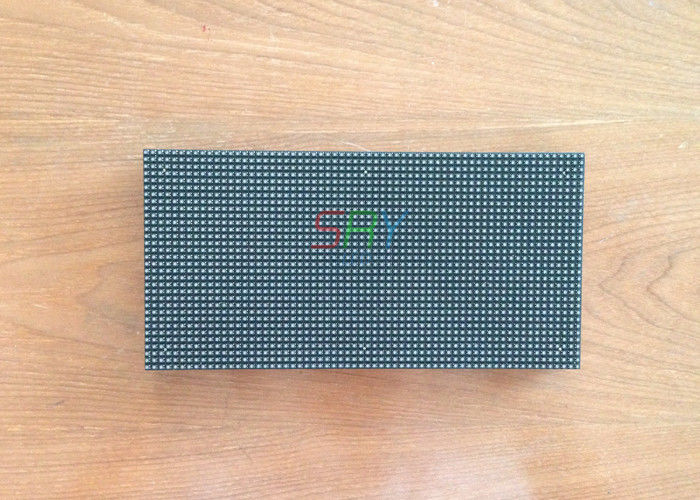

Large Image : 3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY - IF -P3

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	US$ 16 ~ 17 / PCS
Packaging Details:	Free Charge Carton(80pcs in one carton)
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	3,000 PCS per Month

Contact Now

Detailed Product Description

Pixel Pitch:	3mm	LED Encapsulation:	SMD2121
Module Size:	192mm X 96mm	Drive Duty:	1/16scan Constant Current
Module Weight:	0.16kg	MTBF:	10,000hrs
Lifespan:	100,000hrs	Warranty:	2 Full Years
High Light:	LED screen Module , full color LED Display Module

3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

Decription:

HD P3 Indoor Black LED SMD2121 Full Color 1/16scan 192mm x 96mm LED Module. It uses the newest technology to achieve customer's HD requests.

Features:

1. High refresh frequency

Using the latest technology to make the normal constant current(pure-drive) LED display has super high refresh frequency

2. Cabinet splice

Mobilize the modules ensure the cabinet seamless

3. High protection grade

Painting conformal coating to achieve moisture-proof, anti-corrosion, anti-mildew and anti-

electromagnetic capabilities

Specificition:

Pixel Pitch	3mm
Pixel Density	111,111dots/sqm
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD2121
Module Size	192mm x 96mm
Module Resolution	64dots x 32dots
Drive Duty	1/16 Constant Current
Brightness	>1,500nits
Viewing Distance	3m - 30m
Viewing Angle	H: 120°; V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V-20A, AC110V/ 220V/ 50HZ
Max Power Consumption	360W/sqm
Ave. Power Consumption	180W/sqm
Storage Temperature	-40℃~+80℃
Working Temperature	-20℃~+60℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Operating Humidity	10%~95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
