Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 7.62mm | Color Configuration: | 1R1G1B 3in1 |
|---|---|---|---|
| LED Encapsulation: | SMD3528 | Module Size: | 244mm X 244mm |
| Module Weight: | 0.25kg | Drive Duty: | 1/16 Scan |
| Lifespan: | 100,000hrs | Warranty: | 2 Full Years |
| High Light: | Indoor LED Display Module,LED screen Module |
||
P7.62 244mm x 244mm indoor full color LED display Module 1/16 Scan
Decription:
High Definition P7.62 Indoor 244mm x 244mm Full Color LED Module 1/16 Scan.
Specification:
|
Pixel Pitch |
7.62mm |
|
Pixel Density |
17,222dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3528 |
|
Module Size |
244mm x 244mm |
|
Module Resolution |
32dots x 32dots |
| Cabinet Weight | 15kg |
|
Drive Duty |
1/6 Constant Current |
|
Brightness |
>6,500nits |
|
Viewing Distance |
7m - 70m |
|
Viewing Angle |
H: 120°, V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
600W/sqm |
|
Ave. Power Consumption |
200W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
| Waterproof | IP65 |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

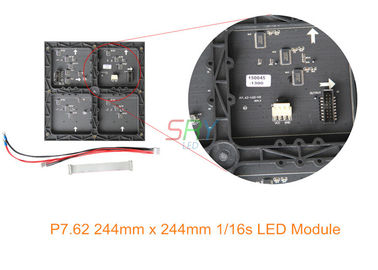

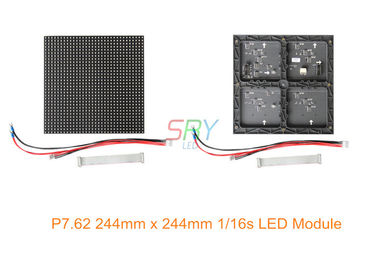

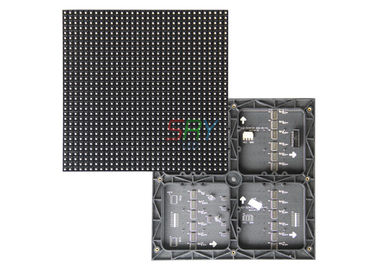

Pictures:
Competitive Advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. Superb performance/price ratio solution for rental market.
3. 24/7 professional after sales service, and on-site service is available.
4. Support different shapes installation: Flat and curved ,create infinite stage styles.
