Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Size Of Panel: | 1280mm X 960mm |
|---|---|---|---|
| Module Size: | 160mm X 160mm | Application: | Basketball / Footaball Match |
| Usage: | Advertising | Drive Method: | 1/4 Scan , Constant Current |
| Brightness: | 7500cd/sqm | Cabinet Weight: | 65KG/pcs |
| High Light: | Stadium LED Display,Perimeter Led Screen |
||
Outdoor Mobile LED Screens RGB Perimeter Advertising LED Display For Soccer Field
Description:
1, Humanization Design
With special soft module mask and cabinet cover, it can protect the players from being hurt during the match.
2, Independent Ground Support Structure, More Stable than You Think
The angle of the ground support structure can be adjusted as you need, to suit the best viewing angle for audience and cameras.
3, Three-high Design and Excellent Visual Effect for Live Video
High refresh rate up to 2000Hz, no scanning line and color patch by HD camera.
High grey scale up to 16 bit, making the image vivid and sharp.
High brightness up to 7500 nits, can be adjustable according to customers actual demand.
4, Indoor and Outdoor are both Available
Cabinets is waterproof, and brightness can be adjustable, indoor and outdoor use are both available.
Features:
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
DIP346 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
16dots x 16dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Brightness |
>7500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Interface |
Hub75 |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, LINSN, NOVA |
|
PC Display Resolution |
1280x1024 |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
P10 stadium led displays are widely used in the football field, basketball court , swimming center and diving center.
1. Show function(advertising, Samsung, Nike, Coca cola, Pepsi etc)
2. Function of time and score(live broadcast)
3. Information processing function
4. Emergency treatment function

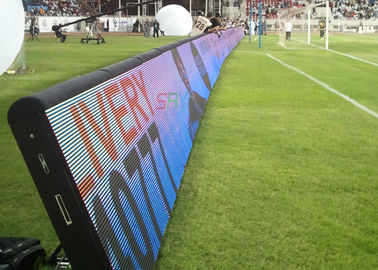

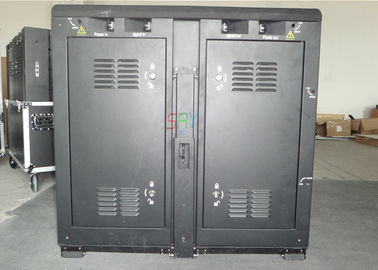

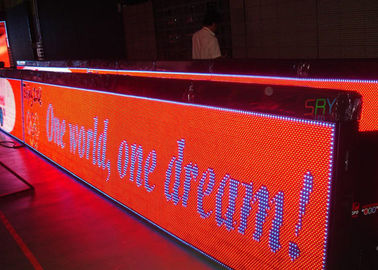

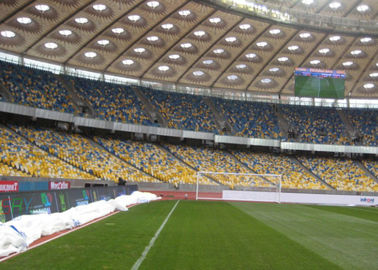

Product Images:
