Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 8mm | Size Of Panel: | 768mm X 768mm |
|---|---|---|---|
| Brightness: | 6000cd/sqm | Weight: | 28KG |
| Waterproof: | IP65 | Led Chip: | SMD3535 |
| Led Brand: | Nationstar | Led Display Size: | 8m X 6m Or Customized |
| High Light: | Perimeter Led Screen,stadium advertising boards |
||
Large 8mm Stadium Perimeter LED Display , SMD3535 Full Color LED Scoreboard
Description:
1. High Brightness
6500nit, P8 stadium led display can be seen clearly under sunlight.
2. Waterproof
P8 stadium led display waterproof is IP65, which ensure products can be used in heavy rainy weather.
3. Static Drive Method
P8 stadium led display drive method is static, its video and image visual effect is very good.
4. Many Types Of Cabinets
SRY P8 stadium led display can be designed to many types, such as front service cabinet, double side cabinet, curved led cabinet, led ball and other shapes.
Feature:
1. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
2.Clear vivid image quality
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display
screen's investment.
3. Big viewing angle
Horizontal 140°and Vertical 140° viewing angle assure audience can see the led display in every set.
4. Easy Installation & Using
easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
Competitive Advantages:
1, Multi Use: P8 stadium led display can be used for advertising, it can also be used as scoreboard in stadium.
2, P8 display brightness is 6500cd/sqm, can be use in indoor and outdoor.
3,Short best view distance for P8 stadium LED displays,the best view distance is above 8 meters.
Specification:
|
Pixel Pitch |
8mm |
|
Pixel Density |
15625dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|
Module Size |
256mm x 128mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Mode |
1/4 Scan Constant Current |
|
Module Weight |
0.4KG/pcs |
|
Interface |
Hub75-A |
|
Standard Cabinet Size |
768mm x 768mm |
|
Cabinet Weight |
28KG |
|
Brightness |
6500cd/sqm |
|
Viewing Distance |
8m-80m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
1000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
PC Display Resolution |
1024x768 |
|
Control PC |
With DVI Graphic card |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
Stadium LED Display ,Perimeter LED Screen, Football Stadium LED Screen, Football Perimeter LED Display, Basketball Stadium LED Displays, Soccer LED Display
Baseball Stadium LED Display Screens, Sporting Stadium LED Video Display,Sports Perimeter LED Screen, Sports Club LED Display, LED Score Boards, LED Score Display,LED Digital Scoreboard
Competitive Advantage:
1) we have our own developing and designing team, which ensure our own technological and innovative product for customers.
2) For any customers who have new idea about some products ,just let us know,we can according to your idea provide a unique design of the products.
3) 2 years warranty, more than 10 years life.
4) our working team and sales teams can guarantee a fast and high efficiency after-sales service of our product sold to everywhere of the global.
5) Within 7-15 days, the led display can be sent to you after your payment. Fast delivery time
6) If necessary, our engineers can be sent to your country to assist you to solve all problem.
7) 1% spare parts.( such as led display module, power supply, data cable, power cable)

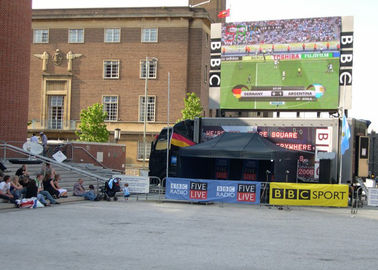

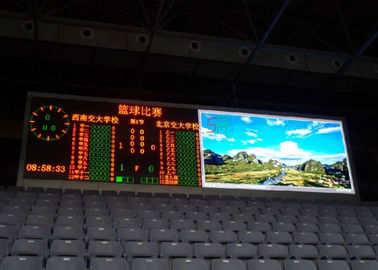

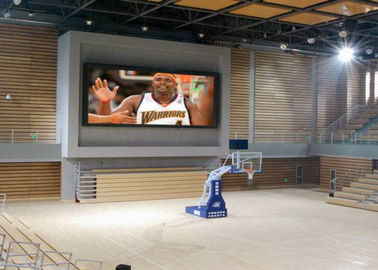

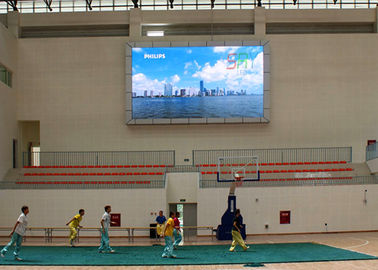

Product Images:
