Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | LED Encapsulation: | SMD3535 |
|---|---|---|---|
| Module Size: | 192mm X 192mm | Drive Duty: | 1/8scan Constant Current |
| Cabinet Material: | Die - Casting Aluminum | Cabinet Size: | 576mm X 576mm |
| Lifespan: | 100,000hrs | Certificate: | CE, LVD, RoHS |
| High Light: | stage background LED screen,Led Stage Curtain Screen |
||
6,500Nits P6 Outdoor Rental LED Display Energy Saving Portable LED Screen
Decription:
HD 6,500nits Outdoor Portable and Energy Saving P6 SMD3535 Full Color LED Stage Display Screen use for outdoor music concert.
1. High Brightness
Outdoor P6 with big SMD LED, its brightness is higher than 6,500nits.
2. Portable design
With fast lock on cabinet sides, it is easy to install and uninstall.
3. Energy-daving design
Max power cunsumption for each square meter only 600W/sqm.
2. Cabinet thinkness: 70mm
3. Best Viewing angle: H: 120º, V: 120º
4. Best viewing distance: 6m - 60m
Specification:
|
Pixel Pitch |
6mm |
|
Pixel Density |
27,777dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3535 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Cabinet Size |
576mm x 576mm |
|
Cabinet Resolution |
96dots x 96dots |
|
Drive Duty |
1/8 Constant Current |
|
Brightness |
>6,500nits |
|
Viewing Distance |
6m - 60m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
600W/sqm |
|
Ave. Power Consumption |
200W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
12kg |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Outdoor big music concert, movie theater, fitness hall, country club, wedding ceremony, brithday ceremony, meeting room, stage shows, exhibitions and etc stage rental use

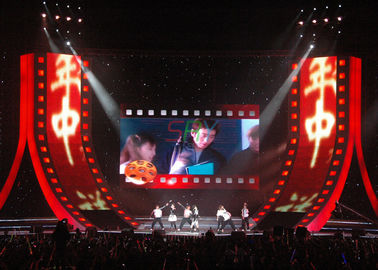

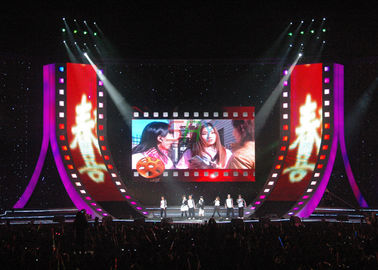

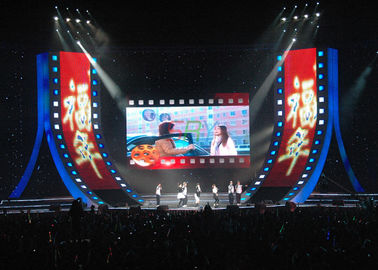

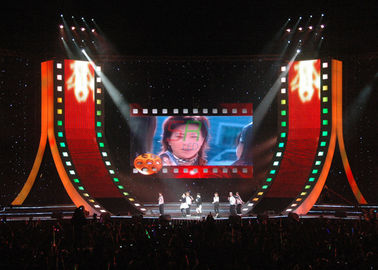

Application Pictures:
Competitive Advantages:
1. Super light cabinet design
2. Super slim cabinet design
3. Seamless splice design
4. Energy saving design
