Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3mm | LED Encapsulation: | SMD2121 |
|---|---|---|---|
| Module Size: | 192mm X 96mm | Drive Duty: | 1/16scan Constant Current |
| Cabinet Material: | Die - Casting Aluminum | Cabinet Size: | 576mm X 576mm |
| Lifespan: | 100,000hrs | Certificate: | CE, LVD, RoHS |
| High Light: | stage background LED display,stage background LED screen |
||
P3MM Stage LED Screens Die - Casting Aluminum Cabinet Indoor LED Video Wall
Decription:
Stage Use Energy Saving High Definition P3 Indoor SMD2121 HD Full Color Portable LED Stage Screen use for indoor music concert, wedding, party, news conference and etc.
1. High Definition
Indoor P3, pixel density 111,111dots/sqm to makes sure high definition.
2. Portable design
With fast lock on cabinet sides, it is easy to install and uninstall.
3. Energy-daving design
Max power cunsumption for each square meter only 360W/sqm.
2. Cabinet thinkness: 70mm
3. Best Viewing angle: H: 120º, V: 120º
4. Best viewing distance: 3m - 30m
Specification:
|
Pixel Pitch |
3mm |
|
Pixel Density |
111,111dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD2121 |
|
Module Size |
192mm x 96mm |
|
Module Resolution |
64dots x 32dots |
|
Cabinet Size |
576mm x 576mm |
|
Cabinet Resolution |
192dots x 96dots |
|
Drive Duty |
1/16 Constant Current |
|
Brightness |
>1,500nits |
|
Viewing Distance |
3m - 30m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
360W/sqm |
|
Ave. Power Consumption |
180W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
9kg |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Indoor big music concert, movie theater, fitness hall, country club, wedding ceremony, brithday ceremony, meeting room, stage shows, exhibitions and etc stage rental use

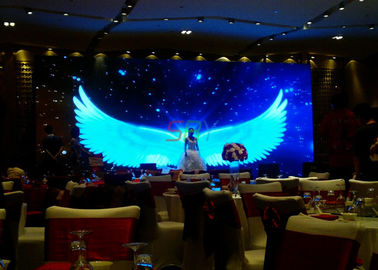

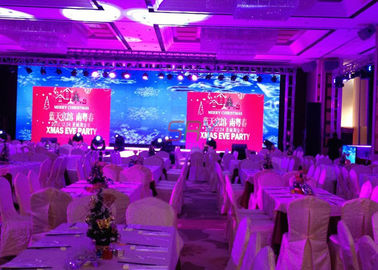

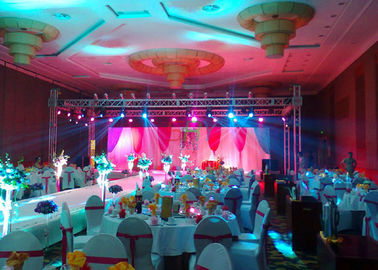

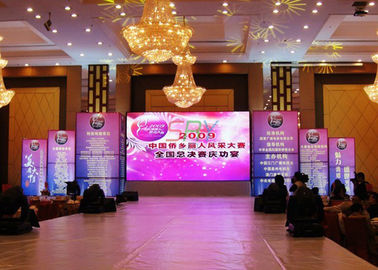

Application Pictures:
Competitive Advantages:
1. Energy saving design
2. Seamless splice design
3. Super slim cabinet design
4. Super light cabinet design
