Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 2.5mm | LED Encapsulation: | SMD2121 |
|---|---|---|---|
| Module Size: | 160mm X 160mm | Drive Duty: | 1/32scan Constant Current |
| Cabinet Material: | Die - Casting Aluminum | Cabinet Size: | 640mm X 640mm |
| Lifespan: | 100,000hrs | Certificate: | CE, LVD, RoHS |
| Highlight: | stage background LED display,Led Stage Curtain Screen |
||
16.7M Color Grade Stage Background LED Screen Pixel Pitch Easy Install And Uninstall
Decription:
2.5mm Pixel Pitch Indoor SMD2121 Super High Definition Full Color Stage LED Display Screen for
exhibition advertising use
1. High Definition
Indoor P2.5, pixel density 160,000dots/sqm to makes sure super high definition.
2. Portable design
With fast lock on cabinet sides, it is easy to install and uninstall.
3. Energy-daving design
Ave. power cunsumption for each square meter only 233W/sqm.
2. Cabinet thinkness: 70mm
3. Best Viewing angle: H: 120º, V: 120º
4. Best viewing distance: 2.5m - 25m
Specification:
|
Pixel Pitch |
2.5mm |
|
Pixel Density |
160,000dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD2121 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
64dots x 64dots |
|
Cabinet Size |
640mm x 640mm |
|
Cabinet Resolution |
256dots x 256dots |
|
Drive Duty |
1/32 Constant Current |
|
Brightness |
>1,200nits |
|
Viewing Distance |
2.5m - 25m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
700W/sqm |
|
Ave. Power Consumption |
233W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
10kg |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Indoor big music concert, movie theater, fitness hall, country club, wedding ceremony, brithday ceremony, meeting room, stage shows, exhibitions and etc stage rental use

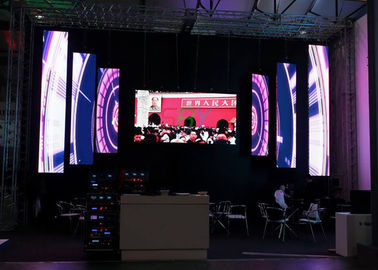

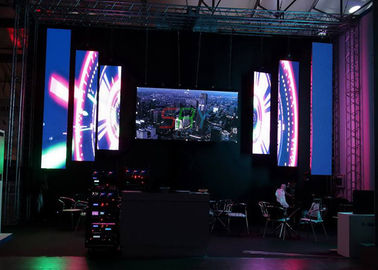

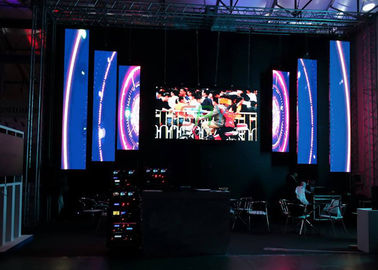

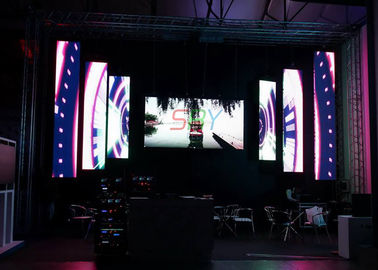

Application Pictures:
Competitive Advantages:
1. Portable design
2. Seamless splice design
3. Super slim cabinet design
4. Super light cabinet design
