Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 7.62mm | LED Encapsulation: | SMD3528 |
|---|---|---|---|
| Module Size: | 244mm X 244mm | Drive Duty: | 1/16scan Constant Current |
| Cabinet Material: | Die - Casting Aluminum | Cabinet Size: | 732mm X 732mm |
| Lifespan: | 100,000hrs | Certificate: | CE, LVD, RoHS |
| High Light: | stage background LED screen,Led Stage Curtain Screen |
||
7.62mm SMD3528 Stage LED Screens , LED Stage Curtain Screen For Rental
Decription:
7.62mm Indoor SMD 1/16scan 732mm x 732mm LED Cabinet Full Color LED Display. P7.62 in recently years becomes less attractive, owing to the price of SMD3528 becomes cheaper than before. Another reason is that the pitch is big. While think about it, with a big size stage screen and the audients standing far from it, still a good choice.
3. Best Viewing angle: H: 120º, V: 120º
4. Max power consumption: <480W/sqm
Specification:
|
Pixel Pitch |
7.62mm |
|
Pixel Density |
17,222dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3528 |
|
Module Size |
244mm x 244mm |
|
Module Resolution |
32dots x 32dots |
|
Cabinet Size |
732mm x 732mm |
|
Cabinet Resolution |
96dots x 96dots |
|
Drive Duty |
1/16 Constant Current |
|
Brightness |
>1,500nits |
|
Viewing Distance |
7m - 70m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 40A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
480W/sqm |
|
Ave. Power Consumption |
160W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
15kg |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Big music concert, movie theater, fitness hall, country club, wedding ceremony, brithday ceremony, meeting room, stage shows, exhibitions and etc.

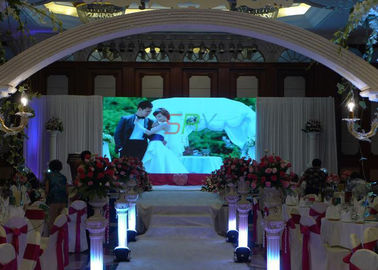

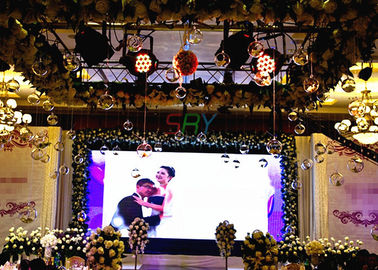

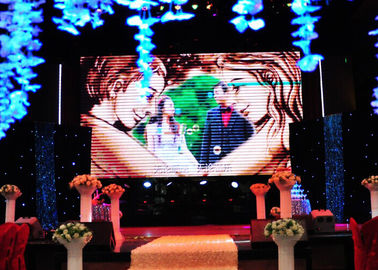

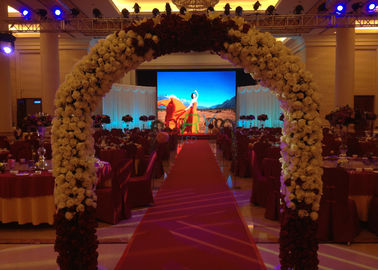

Application Pictures:
Competitive Advantages:
1. High definition, high brightness and high refresh
2. CE, LVD, RoHS certified, two full years warranty
3. High quality, competitive price and best post-sale service
4. Longlife span, energy-saving design and lower power consumption
