16mm Full Color Outdoor LED Billboard For Express Way , Static LED Display

Large Image : 16mm Full Color Outdoor LED Billboard For Express Way , Static LED Display

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY - OF - P16

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$ 650 - 720 / Square Meter
Packaging Details:	Wooden Case (case size based on cabinet size and qty, 2 cabinets in 1 wooden case)
Delivery Time:	10 - 12 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	3,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	16mm	LED Encapsulation:	DIP346
Module Size:	256mm X 256mm	Drive Duty:	Static Constant Current
Module Weight:	0.90kg	Waterproof:	IP65
Brightness:	8,000cd/sqm	Warranty:	2 Full Years
High Light:	LED video billboards , LED digital billboards

16mm Full Color Outdoor LED Billboard For Express Way , Static LED Display

Decription:

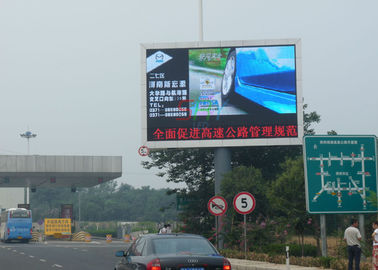

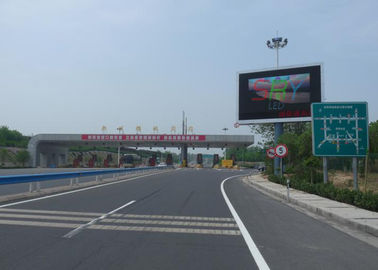

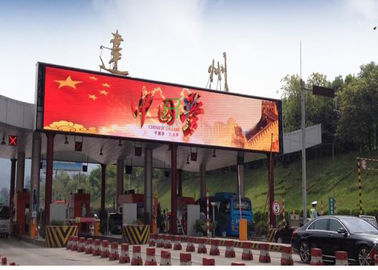

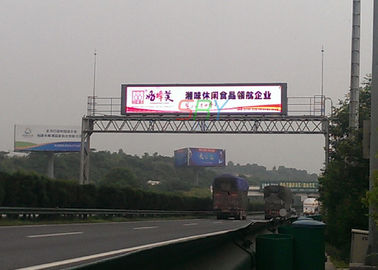

Static Scan Outdoor 16mm High Brightness Full Color LED Billboard for Express Way Use. The 1,024mm x 1,024mm cabinet with this kind modules,only need 16pcs. It saves cables. And the screen brightness can be higher than 8,000nits. It works very well in daytime.

Features:

1. High brightness: >8,000cd/sqm

2. Best viewing distance: 16m - 160m

3. Best viewing angle: H: 120°; V: 70°

4. High refresh rate: 2000HZ

Specificition:

Pixel Pitch	16mm
Pixel Density	3,906dots/sqm
Color Configuration	1R1G1B
LED Encapsulation	DIP346
Module Size	256mm x 256mm
Module Resolution	16dots x 16dots
Drive Duty	Static Constant Current
Brightness	>8,000nits
Viewing Distance	16m - 160m
Viewing Angle	H: 120°; V: 70°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	1,180W/sqm
Ave. Power Consumption	390W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof	IP65
Operating Humidity	10%~95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
