Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 8mm | LED Encapsulation: | SMD3535 |
|---|---|---|---|
| Module Size: | 256mm X 128mm | Brightness: | 6,500nits |
| Waterproof: | IP65 | MTBF: | 10,000hrs |
| Lifespan: | 100,000hrs | Warranty: | 2 Full Years |
| High Light: | LED advertising billboards,LED digital billboards |
||
PH8mm RGB large led video display , custom led digital display SMD3535
Decription:
Waterproof PH8mm RGB Full Color Outdoor Advertising LED Billboard Screen 1R1G1B, brightness is higher than 6,500nits. Best viewing distance is 8m - 80m. Max power consumption is 800W/sqm. To sum up this kind P8 sells very well in LED displays area. It is the best seller among all LED displays.
2. Easy to maintain
3. Good color uniformity
4. Low power consumption
5. Slim screen thickness
6. Light cabinet design
7. 100,000hrs lifespan
Specificition:
|
Pixel Pitch |
8mm |
|
Pixel Density |
15,625dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Encapsulation |
SMD3535 |
|
Module Size |
256mm x 128mm |
|
Module Resolution |
16dots x 8dots |
|
Drive Duty |
1/4scan Constant Current |
|
Brightness |
>6,500nits |
|
Viewing Distance |
8m - 80m |
|
Viewing Angle |
H: 120°; V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Outdoor column LED billboards are widely use in road side, express way, gas station, playground and

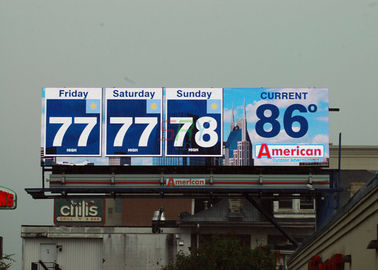

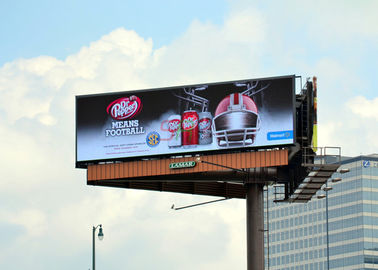

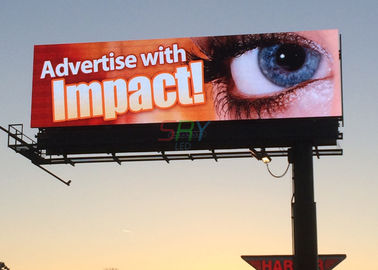

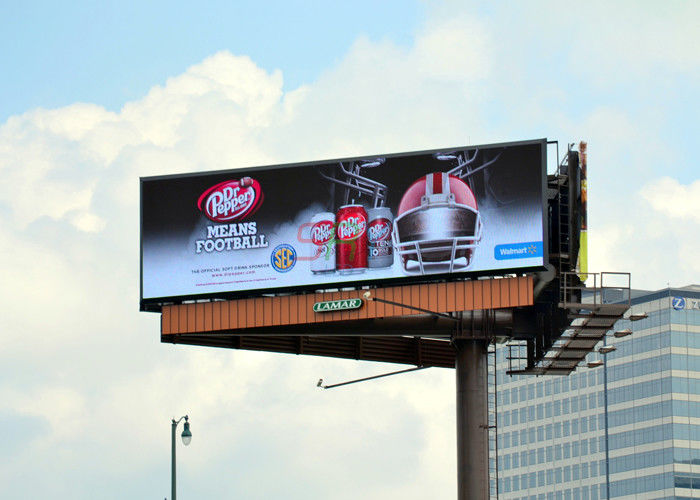

Related Pictures:
Competitive Advantages:
1. Energy-saving pioneer:
The max powder consumption is only 410w/sqm,30% energy-saving more than others,environmental friendly,more economical.
2. High protection,stable and reliable product:
Can withstand cold,hot,humind and other kinds of tests.It is stable,reliable and trusworthy.
3. Fast delivery:
Product standardization,large-scale production,rapid delivery.
