1/16 Scan 256mm X 128mm Indoor Rental Led Display 4mm SMD2121

Large Image : 1/16 Scan 256mm X 128mm Indoor Rental Led Display 4mm SMD2121

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY - IF - P4

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$ 1,050 - 1,180 / Square Meter
Packaging Details:	Flight Case (0.520x0.62x0.72m，case size based on cabinet size. 6 cabinets in 1 flight case)
Delivery Time:	10 - 12 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	4mm	LED Encapsulation:	SMD3528
Module Size:	256mm X 128mm	Drive Duty:	1/16scan Constant Current
Cabinet Material:	Pulled Aluminum	Cabinet Size:	512mm X 512mm
Lifespan:	100,000hrs	Certificate:	CE, LVD, RoHS
High Light:	stage background LED screen , Led Stage Curtain Screen

1/16 Scan 256mm X 128mm Indoor Rental Led Display 4mm SMD2121

Decription:

1/16scan 256mm x 128mm, HD 4mm Indoor SMD2121 Full Color Stage LED Display Screen. Its cabinet size is 512mm x 512mm. Module size is 256mm x 128mm. Using bigger size modules, which saves data and power cables. Making the splice between modules and cabinets smaller.

Features:

1. Super light cabinet

Cabinet Weight: 7kg

2. Super slim cabinet

Cabinet thinkness: 70mm

3. Wide viewing angle

Viewing angle: H: 120º, V: 120º

4. Energy saving and low power consumption

Ave. power consumption: 184W/sqm

Max. power consumption: 550W/sqm

Specification:

Pixel Pitch	4mm
Pixel Density	62,500dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD2121
Module Size	256mm x 128mm
Module Resolution	64dots x 32dots
Cabinet Size	512mm x 512mm
Cabinet Resolution	128dots x 128dots
Drive Duty	1/16 Constant Current
Brightness	≥1,500nits
Viewing Distance	4m - 40m
Viewing Angle	H: 120°, V:120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	550W/sqm
Ave. Power Consumption	184W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Cabinet Weight	7kg
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

New products conference, big music concert, movie theater, wedding ceremony, brithday ceremony, meeting room, stage shows, exhibitions and etc.

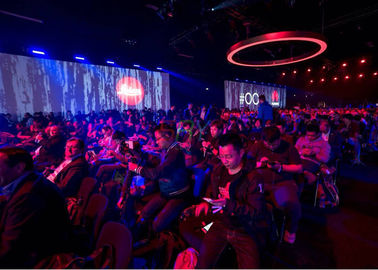

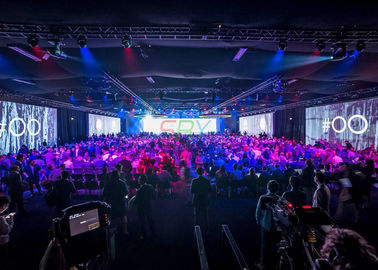

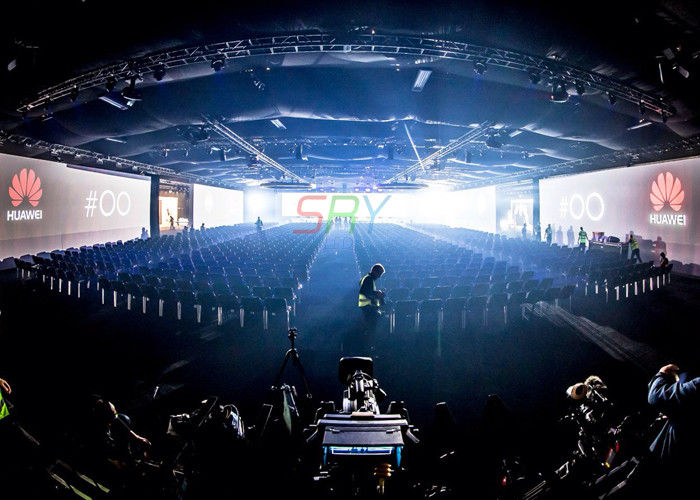

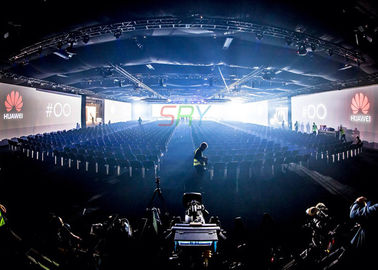

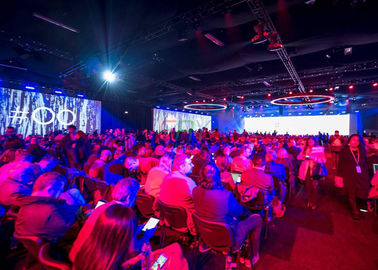

Application Pictures:

1/16 Scan 256mm X 128mm Indoor Rental Led Display 4mm SMD2121

1/16 Scan 256mm X 128mm Indoor Rental Led Display 4mm SMD2121

Competitive Advantages:

1. High brightness, high definition, wider viewing angle.

2. energy-saving design and lower power consumption.

3. High quality, competitive price and best post-sale service.

4. CE, LVD, RoHS certified, 2 full years warranty, long lifespan.
