Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3.91mm | Module Size: | 250mm X 250mm |
|---|---|---|---|
| Pixel: | 64 X 64 Dot | Led Chip: | SMD2121 |
| Drive Method: | 1/16 Scan | Cabinet Size: | 500mm X 500mm |
| Cabinet Material: | Die Casting Aluminum | Certificates: | CE, RoHS |
| High Light: | stage background LED screen,Led Stage Curtain Screen |
||
High Refresh P3.91 / P4.81 SMD Stage LED Screens 500 x 500mm Led Wall Screen
Available Led Pixel: P3.91, P4.81, P5.21, P6.25, P7.8
Description
1, Lightweight
The aluminum die-casting technology makes the single cabinet as light as 8kg, which is convenient for assembly and transportation. Are you planning to move the display after some time? Buy die casting aluminum led display please!
2, Seamless connection
The aluminum die-casting will have less tolerance , the precision reach ±0.05m so as to achieve seamless assembly. Stronger and better looking compared to normal cabinets.
3, Modular and easy to maintain
There is almost no more ribbon cables for the cabinet and module. Everything connected straight on the PCB hub. Less cables means less possible problems. And no need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose.
4, High refresh rate
The driving is using the new Taiwan technology for high performance. The chips can generate a speed of > 3840Hz refresh rate to ensure the picture wrinkle-less, line-less and stable.
5, No ghost effect
It is because we use the highest technology of driving chips that also will improve the ghost effect. Ghost effect gives a bad results on led display screens and now be eliminated.
Features
1, Ultra-Slim and Light-weight with Aluminum-magnesium Alloy
2, Huge Viewing Angle and Outstanding Uniform Performance of LEDs
3, Seamless Splicing and Fast Installation
4, Noiseless with No-fan Design
5, High Quality Raw Material
Competitive Advantages
1, First-class led chip and IC
2, 48 hours aging for modules and led screens
3, 24/7 after-sale service
4, Free technology and operation training
5, Engineer guide install and operate online
Specification
|
Pixel Pitch |
3.91mm |
|
Pixel Density |
65536dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Size |
250mm x 250mm |
|
Module Resolution |
64dots x 64dots |
|
Drive Mode |
1/16 Scan |
| Cabinet Material | Die casting Aluminum |
| Led Color | Black |
|
Standard Cabinet Size |
500mm x 500mm |
|
Cabinet Weight |
8KG |
|
Brightness |
≥1300 cd/sqm, adjustable by software |
|
Viewing Distance |
4m-40m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
3840HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
PC Display Resolution |
1280x1024 |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |

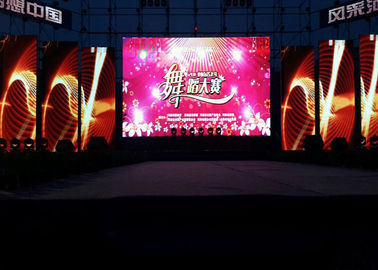

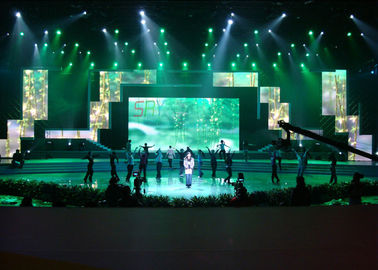

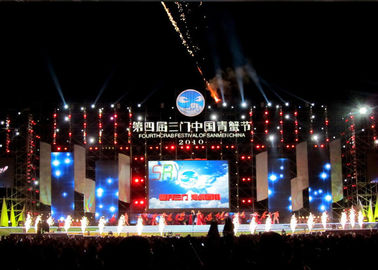

Applications
|
Business Organizations |
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
|
Entertainments |
Movie theaters, clubs, stages |

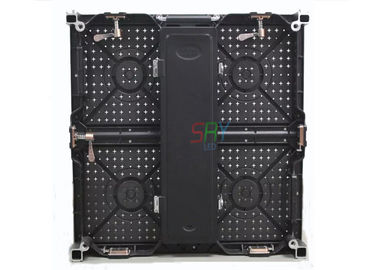

Product Images
