Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10.416mm | Module Size: | 250mm X 250mm |
|---|---|---|---|
| Pixel: | 24 X 24 Dot | Led Chip: | SMD3535 |
| Drive Method: | 1/8 Scan | Cabinet Size: | 500mm X 1000mm |
| Cabinet Material: | Die Casting Aluminum | Brightness: | 4500cd/sqm |
| High Light: | stage background LED screen,Led Stage Curtain Screen |
||
Transparent Flexible Led Screen SMD3535 P10.4 Led Mesh Screen For Stage Background
Available Led Pixel: P6.25, P8.925, P10.416, P12.5
Description
1. Using SMD 3535 led lamp, which is much better than DIP for rental screen
a) It has a very wide viewing angle >120 degree in horizontal and vertical .
b) High equality of lamp brightness and good color mixture, this is very suitable for rental use
especially when audience has a closer viewing distance.
c) SMD weight less than DIP lamps.
2. Super slim and super light, fast installation
The cabinet size is 500*1000*80mm,saving a lot of space for storing and transportation.
The weight is only 12 KG/cabinet. This not only saves much transportation cost, but also saves labor cost. Even one person can easily install 1pcs cabinet in 1 min.
3. IP65 protection level, water-proof.
Strong weather resistance, can be used in various severe outdoor environments in long-term.
4. You can choose either transparent and no transparent design.
Semi-transparent design for air ventilation and heat dissipation.
5. Brightness up to 5500cd/sqm to satisfy both indoor and outdoor event rental use. (Brightness adjustable)
6. Hanging design. Can be hanged as well if needed.
7. Solid cabinet structure. Meet the requirement of thousand times of assemble and disassemble.
8. Cabinet shape and design. Can be assembled whether flat or curved, any shape as you like.
Features
1, Ultra-Slim and Light-weight with Aluminum-magnesium Alloy
2, Huge Viewing Angle and Outstanding Uniform Performance of LEDs
3, Seamless Splicing and Fast Installation
4, Noiseless with No-fan Design
5, High Quality Raw Material
Competitive Advantages
1, First-class led chip and IC
2, 48 hours aging for modules and led screens
3, 24/7 after-sale service
4, Free technology and operation training
5, Engineer guide install and operate online
Specification
|
Pixel Pitch |
10.416mm |
|
Pixel Density |
9217dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|
Module Size |
250mm x 250mm |
|
Module Resolution |
24dots x 24dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Standard Cabinet Size |
500mm x 1000mm |
|
Cabinet Material |
Iron / Aluminum |
|
Cabinet Weight |
15KG / 11KG |
|
Brightness |
4500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
400W/sqm |
|
Ave. Power Consumption |
100W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control PC |
With DVI Graphic card |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications
|
Business Organizations |
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
|
Entertainments |
Movie theaters, clubs, stages |

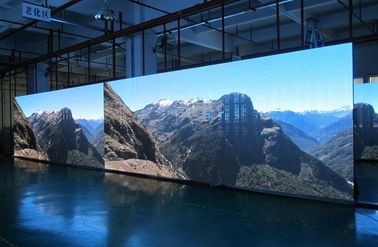

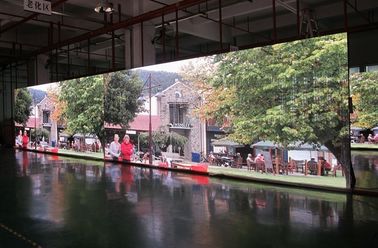

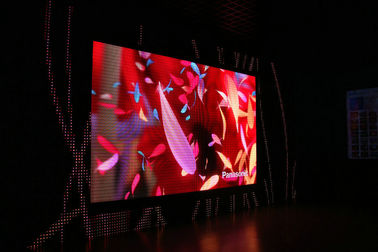

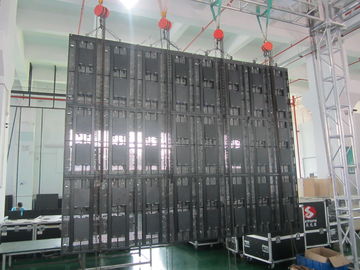

Product Images
