| Input Voltage: | AC 110V - 220V ± 15% | Application Model: | Indoor And Outdoor |
|---|---|---|---|
| Weight: | 5kg | Warranty: | 2 Full Years |
| High Light: | LED display Sending Card,led screen video processor |
||
NovaStar Full Color Controller MCTRL600 Sending Box Cascade Support Controller
Feature:
MCTRL600 is an advanced model of Nova controllers, which supports extra-large solution. With HDMI/DVI video input and four Ethernet port outputs, a single unit is able to load 2560×960. Multiple units can be cascaded for uniform control.
Product Type: Controller
Input Resolution: 1920×1200,2048×1152,2560×960(width and height can be specially defined by customers)
Capacity: 2.3 million pixels
Supply Voltage: AC-100-240V-50/60HZ
Control Method: USB Interface
Video Interface: HDMI / DVI
Audio Interface: HDMI/3.5mm
Viedo Format: RGB,YCrCb4:2:2,YCrCb4:4:4
Output Interface: 4 Ethernet ports
Bit Depth Of Video Resource: 8/10/12bit
Light Sensor Interface: 1
Certification: CE, ROHS, FCC, EAC, IC
1) HDMI/DVI input;
2) HDMI/external audio input;
3) 12bit/10bit/8bit HD video source;
4) Resolution supported: 2048×1152,1920×1200,2560×960;
5) Resolution supported: 1440×900 (12bit/10bit);
6) 1 light sensor interface;
7) Cascading supported;
8) 18bit gray scale processing and presentation;
9) Video format: RGB, YCrCb4:2:2, YCrCb4:4:4;
10) Standard 1U housing and independent power supply.

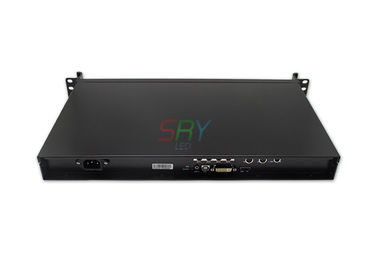

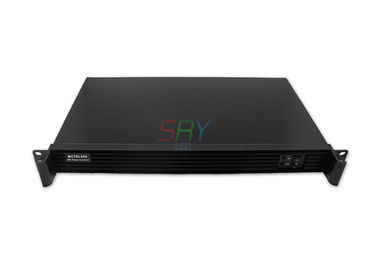

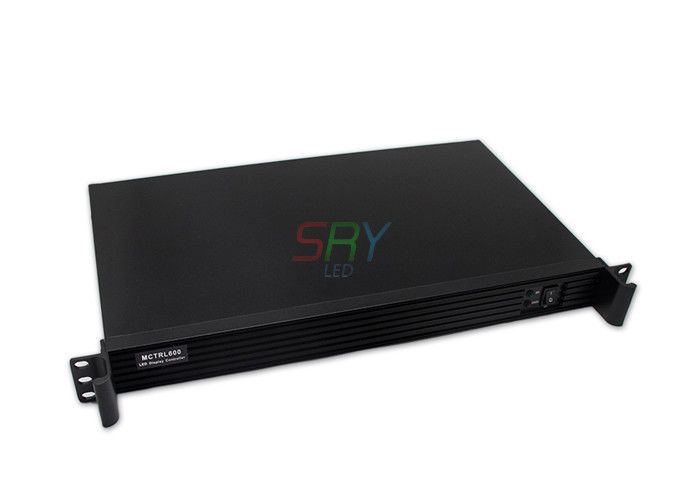

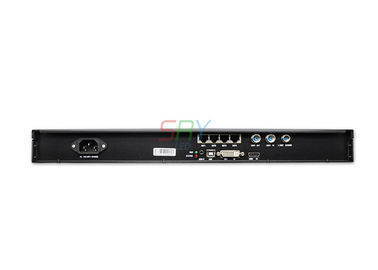

Product Picture:
