Led screen video processor LED Display Accessories AMS - FVP805 7 Channel Video Input

Led screen video processor LED Display Accessories AMS - FVP805 7 Channel Video Input

More video input - AMS-FVP805 Video Processor 6 Channel video input,, 2 AV/ CVBS,2 VGA,1 DVI,1 HDMI,1 DP,1 SDI/HD-SDI(Expanding), Basically covers the civil and industrial uses. All video input switching and enables fast cut and fade transitions.

Practical video output interfaces - AMS-FVP805 Video Processor has three video outputs. 2 video output using two DVI outputs, including a VGA output and DVI outputs share one output connector.
After these three videos are programmed to send output to the LED card or monitor. DVI1 video distribution output (LOOP OUT), in a multi-machine splice is very practical, eliminating the use of video distributor, saving the user the tedious connections, reducing connection failure rate.

Seamless switching - AMS-FVP805 LED Video Processor can also seamlessly switch between any channels switching, with a fade transition effect; switch the input channel, so that the screen can be switched smoothly to the second screen. Using fast switching, switching input channels; you can instantly switch the video output.

Full output resolution, Can fixed the input resolution - AMS-FVP805LED Video Processor designed for users with useful output resolution, the widest reach 2560 points, the highest of 1920 points, for a variety of dot matrix display. Up to 20 kinds of output resolution for users to choose, and can be adjusted to point output; the?input resolution,?can be locked?for a fixed?resolution.

Equal and unequal stitching - stitching is AMS-FVP805 LED Video Processor important part, which can be achieved equal stitching and unequal stitching, stitching on greatly satisfy users' needs. On multiple processors to achieve frame synchronization, 0 delay, no tail and other technologies to enable smooth performance perfect. Unequal spliced portion of the output is the same with the picture settings; the user can read the following chapters for instructions.

Support PIP –AMS-FVP805 LED Video Processor PIP technology unaltered state in the original image, the other input of the same or different overlay images. LED Video Processor PIP function, not only can be adjusted overlay size, location, borders, etc. You can also use this feature to achieve Picture outside Picture (POP), dual-screen display.

One key black - Black screen during a performance is an essential operation, during a performance, you need to close the image output, and you can use the “TAKE” keys for fast black.

Mode –AMS-FVP805 LED Video Processor user presets with 7 groups, each user can store all user default setup parameters, use the MODE preset shortcut keys you can quickly recall. Can achieve rapid field parameter backup and recall function.

30bit scaling technology –AMS-FVP805 Video Processor using a dual-core image processing engine, a single core can process 30 image scaling technology to achieve pixel output from 64 to 2560, while achieving 10 times the image to enlarge the output, i.e., the maximum screen more than 25,600.

Brightness adjustment technology –AMS-FVP805 Video Processor unique brightness adjustment function, reduce the brightness solved after layering lost, so that more true color reproduction.

Perfect Image processing technology - As described below
Faroudja DCDI Deinterlacing video processing;
Faroudja Real Color True color image processing;
Faroudja TureLife Video image enhancement;

AIAO(Any In Any Out) function –AMS-FVP805 Video Processor can be a part of any interception of the input picture and make itdisplay the output to any area,let the?playback function?more egotistical,flexible.

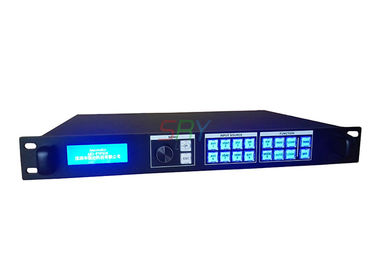

Panel?button operation convenient– AMS-FVP805 Video Processor can be adjusted by the rotary button fast setup, the front panel knob, button switch directly input signal source, Perfect
RS232 serial protocol to support all the controls and?settings.

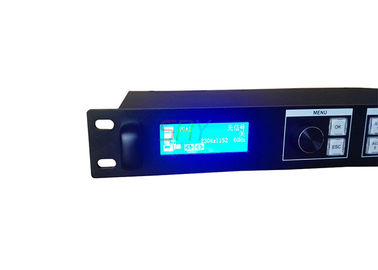

Intuitive interface –AMS-FVP805 Video Processor can be intuitive LCD interface,the button lights,a goal of?understanding processor working state can be built 2 to send a card.

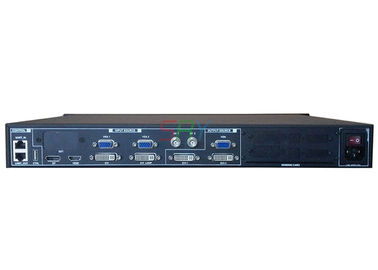

Product Picture:
