Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 12mm | Module Size: | 192mm X 192mm |
|---|---|---|---|
| Control Way: | Sychronous | Waterproof: | IP65 |
| Best Viewing Distance: | 12m - 120m | Refresh Rate: | 2,000HZ |
| High Light: | truck mounted led display,led truck advertising |
||
2R1G1B PH12 led screen billboard truck Mounted Installation , led display trailer
Decription:
1. Easy maintenance, front and rear maintenance are available
2. Widely application area, such as main screen, side screen, floor screen curved screen
3. Die casting aluminum cabinet design, saves 40% steel structure
4. Hollow design, wind resistant and great heat dissipation
5. Outdoor and indoor cabinets and modules are compatible with each other
Specification:
|
Pixel Pitch |
12mm |
|
Pixel Density |
6,944dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
2R1G1B |
|
LED Encapsulation |
DIP346 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
16dots x 16dots |
|
Cabinet Size |
960mm x 960mm |
|
Cabinet Resolution |
80dots x 80dots |
|
Drive Duty |
1/4 Constant Current |
|
Brightness |
>7,500nits |
|
Viewing Distance |
12m -120m |
|
Viewing Angle |
H: 120°, V:70° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
520W/sqm |
|
Ave. Power Consumption |
1750W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
| Waterproof | IP65 |
|
Cabinet Weight |
45kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
1. Light weight and slim design, 45kg/cabinet, cabinet size is 960mm x 960mm
2. Quick and easy, 10 seconds for assembling 2 cabinets without any tools
3. Floor screen can bear 1 ton of weight and IP 65 protection level
4. Energy saving and environmental friendly
5. Capability to control the gap between cabinets
Application:
Vehicle, truck, trailer, pickup car and etc mounted use for advertising

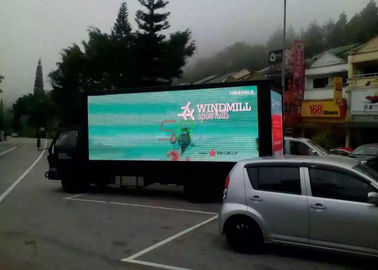

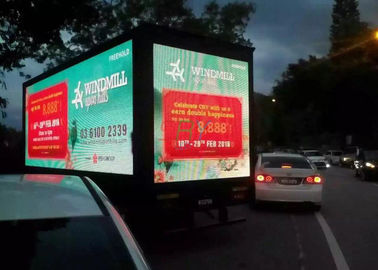

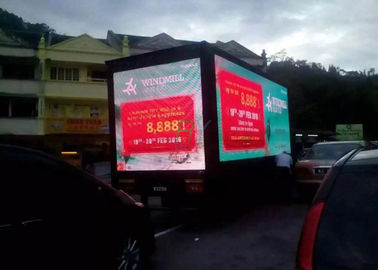

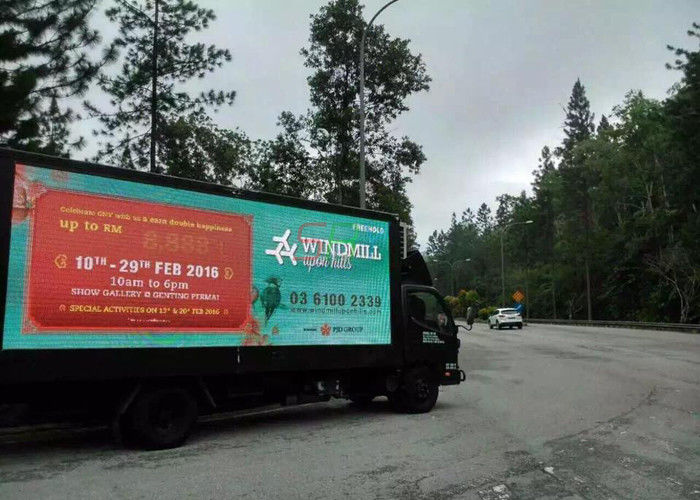

Application Pictures:
Competitive Advantages:
1. Low power consumption
2. Seamless splice design
3. Super slim cabinet design
4. Super light cabinet design
