Product Details:
Payment & Shipping Terms:
|
| Control Way: | Sychronous | Control System: | Linsn |
|---|---|---|---|
| Warranty: | 2 Full Years | Certificate: | CE, LVD, RoHS |
| Operating System: | Win 98, Win2000, XP, 07.etc | Power Input: | AC110V/ 220V/ 50HZ |
| High Light: | truck mounted led display,led truck advertising |
||
Portable Truck Mounted Advertising LED Display Panel P10mm, Movable LED Display Commercial Use
Decription:
1. High Contrast
Newstar outdoor LED screens enable to deliver sharp visual effects to our audience.
2. Seamless Design
It eliminates the gap between the module and cabinet making LED screen much more even.
3. Comprehensive Application
It can be used in different suitations for mulit purposes such as lease market, advertisement, stadium, shopmall etc.
4. High Quality and Reliability
Our many outdoor screen have been fixed around the world for 3-5 years and no product issues called.
5. Uniform performance
Newstar always insists using same batch of high quality lamps to make LED screen. Therefore, the LED
screen looks more uniform. No need to do dot correct.
1. 4. Hollow design, wind resistant and great heat dissipation
2. Die casting aluminum cabinet design, saves 40% steel structure
3. Quick and easy, 10 seconds for assembling 2 cabinets without any tools
4. Light weight and slim design, 45kg/cabinet, cabinet size is 960mm x 960mm
5. Outdoor and indoor cabinets and modules are compatible with each other
Specification:
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD2727 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
64dots x 32dots |
|
Cabinet Size |
960mm x 960mm |
|
Cabinet Resolution |
192dots x 192dots |
|
Viewing Distance |
5m - 50m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
| Waterproof | IP65 |
|
Cabinet Weight |
45kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Vehicle, truck, trailer, pickup car and etc mounted use for advertising

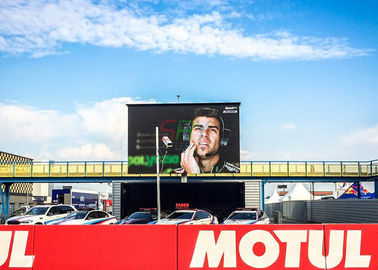

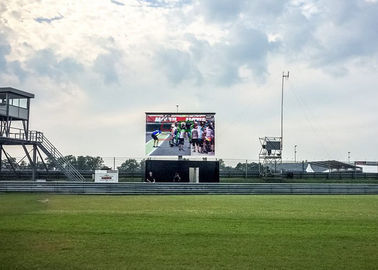

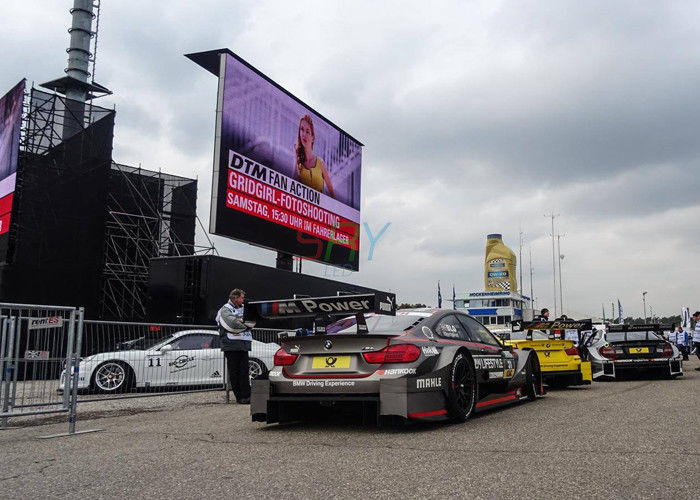

Related Projects:
Competitive Advantages:
1. Long Life Span
2. Good Quality and great Performance
3. High Cost Effective
4. Free maintenance service
5. Front/Rear access Available
