Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC 110V - 220V ±15%, 50HZ | Cabinet Material: | Die-casting Al |
|---|---|---|---|
| Cabinet Resolution: | 128dots X 128dots | Cabinet Size: | 500mm X 500mm |
| Cabinet Weight: | 7kg | Lifespan: | >100,000hours |
| Warranty: | 2 Full Years | Certificate: | CE, LVD, RoHS |
| High Light: | stage background LED screen,Led Stage Curtain Screen |
||
1500 Nits High Brightness P3.91 Stage LED Screens Rental For Advertising Media
Decription:
1. Pixel Pitch: 3.91mm
2. Color Configuration: 1R1G1B 3in1
3. LED Encapsulation: SMD2121
4. Module Size: 250mm x 250mm
5. Cabinet Size: 500mm x 500mm
6. Cabinet Material: Die-casting Al
Light. Cabinet size of 500*500mm and light weight of only 7kg enable one-person installation easier and simpler, save installation time. But traditional LED screen is over 25 Kg with the same size.
Thin.Adopting the die-casting aluminum, it is high strength, high tenacity, high accuracy and not easy to distort. The thickness of our cabinet is 87mm, the traditonal cabinet is 160mm.
Easy. Adopting modular design, assembled cabinet can install and disassembly quickly and easily. It is easy to maintenance.
Low. Has excellent heat dissipation design and performance. it is low noise and doesn't need external fan or air-condition. With the features of lighweight and low power consumption, it can reduce the labor cost of installation and operating costs.
Quick. Adopting quick locking mechanism on the Up, down, left and right connection. Tighten two cabinet up with pull and turn the two handles by 90 degrees. You can install one cabinet with high accuracy in 10 seconds. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly.
Compatible. New structure design, can satisfy hoisting, overstow, indoor and outdoor used requirements. Cabinet simplification, and various pixel pitch of indoor and outdoor mudules such like P4, P5.33,P6.4,P8,P10.66,P12.8,P16 are compatible.
Specifications
| Item | Unit | Parameter |
| Pixels(Pixel Pitch) | mm | 3.91mm |
| Pixel Density | dots/sqm | 65,536dots/sqm |
| Color Configuration | 1R1G1B 3in1 | |
| LED Encapsulation | SMD2121 | |
| Drive Duty | scan | 1/16scan |
| Cabinet Resolution | dots | 128dots x 128dots |
| Cabinet Size | mm | 500mm x 500mm |
| Cabinet Weight | kg | ≈7kg |
| Brightness | nits | >1,500nits |
| Best Viewing Distance | m | 4m - 40m |
| Best Viewing Angle | ° | H:120 °, V: 120° |
| Lifespan | hours | >100,000hours |
| MTBF | hours | >10,000hours |
| Working Temperature | Celsius | -20Celsius - +60Celsius |
| Working Humidity | 10% - 95%RH | |
| Warranty | 2 Full Years | |
| Certificate | CE, LVD, RoHS |
Application:

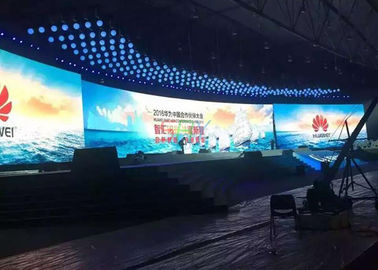

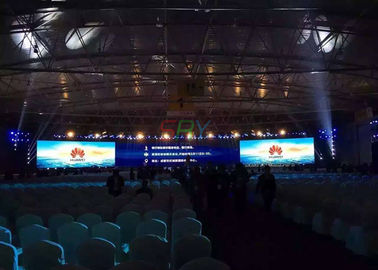

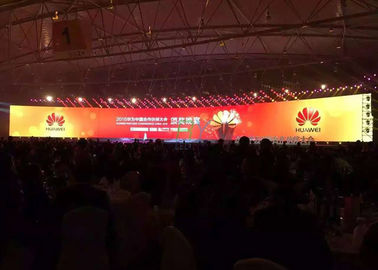

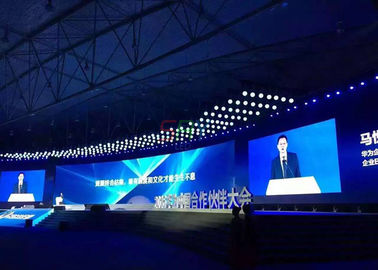

Widely using for theater, stadium, showroom, stage, monitoring room and etc.
Related Projects:
Competitive Advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. 2 full years warranty. 24hours/week on-line service
3. .Superb performance / price ratio solution for rental market.
4. Plug and play, without tools to install / uninstall one cabinet in 6s.
5. One set cabinet structure is compatiable with various pixel pitches module.
