Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Resolution: | 40000 Dots/sqm |
|---|---|---|---|
| Led Sign Size: | 960mm X 320mm | Control Way: | 3G / 4G / WIFI |
| Net Weight: | 25KG/unit | Warranty: | 2 Years |
| High Light: | taxi top LED display,taxi roof LED display |
||
Outdoor Advertising P5 Full Color Taxi Top Roof LED Sign Wireless 3G System 960mm x 320mm
Decription:
3, Led taxi roof sign , double-sided, could reach more people as possible.
4, Easy for installation, we could provide a special structure for isntallation if you like.
5, With High brightness, make the display content visible even under sunshine during daytime.
6, Large viewing angle , full color, high color uniformity and clear image, bring you a vivid audio visual effect.
This is P5 type,960x320mm screen dimension each side,192x64pixels;
It can be customer-designed,with LOGO at the two sides
It is controlled by 3G,convenient to operate.
Application:
Taxi roof, car roof, bus rear side, left side and right side.
Specificition:
| Display specification | ||
| 1 | Pixel pitch | 5mm |
| 2 | Resolution | 40,000dots/m2 |
| 3 | Display size(each side) | W0.96xH0.32=0.3072m2 |
| 4 | Screen resolution(each side) | W192xH64=12.288 |
| 5 | Total module quantity(each side) | W6xH2=12pcs |
| 6 | Total cabinet quantity | 1pc |
| 7 | Cabinet size(including frame) | W1012xH408xD160mm |
| 8 | Power consumption(Max) | 650W |
| 9 | Power consumption(ave.) | 435W |
| 10 | Maximum Current | 54.5Amp |
| LED module specification | ||
| 11 | LED composition | 1R1G1B |
| 12 | LED type | SMD3528 |
| 13 | Module resolution | W32xH32 |
| 14 | Module size | W160xH160mm |
| 15 | Driving method | 1/8 scan constant current |
| Cabinet Specification | ||
| 16 | Cabinet material | Aluminum cabinet with frame |
| 17 | Cabinet color | silver |
| 18 | Cabinet weight | about 23kg |
| 19 | Flatness | less than 1mm juncture |
| Optical Parameters | ||
| 20 | Brightness | 3,000nits/m2 |
| 21 | Viewing angle | Horizontal 140°,Vertical 70° |
| 22 | Minimum viewing distance | 5m |
| Power supply | ||
| 23 | Power supply | DC9-36V |
| 24 | Output voltage | DC5V |
| Control System | ||
| 25 | Control card | Sheenled |
| 26 | Memory | 4G |
| 27 | Control method | 3G |
| 28 | Refresh rate | 480Hz |
| 29 | Refresh frame frequency | 60-85Hz |
| Formats Supported | ||
| 30 | Video | AVI,WMV,MPG,MOV,DAT,VOB,MP4,FLV |
| 31 | Animation | GIF,SWF |
| 32 | Picture | JPG,BMP,WMF |
| Reliablity | ||
| 33 | Protection grades | IP65 |
| 34 | Work temperature | -20~+60℃ |
| 35 | Humidity(RH) | 10~90% |
| 36 | LED life span | more than 100,000 hours |
| 37 | MTBF | 5000hours |
| 38 | Out of control dot rate | less than 1/10,000 |

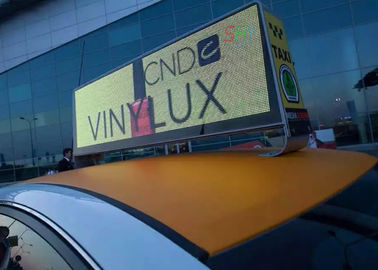

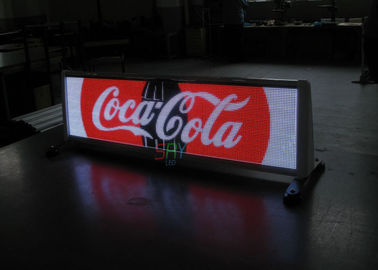

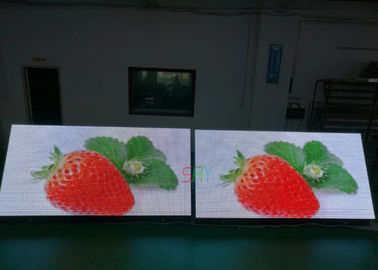

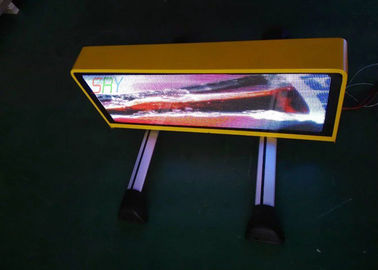

Product Pictures:
