Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3.91mm | LED Type: | SMD2525 |
|---|---|---|---|
| Brightness: | 5500 Nits | Display Size: | 1000mm X 500mm Per Side |
| Control Way: | 3G / 4G / WIFI / GPRS / Androi | Weight: | 80KG/pcs |

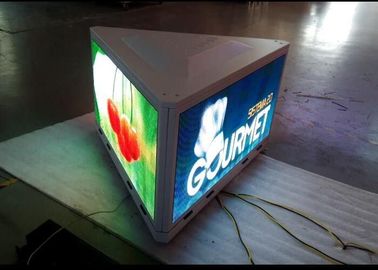

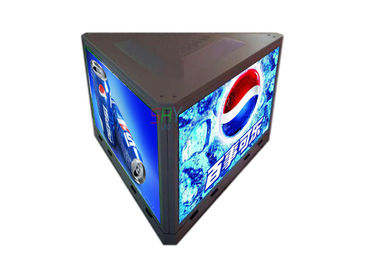

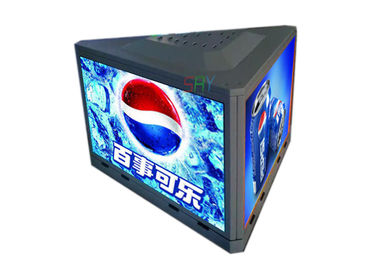

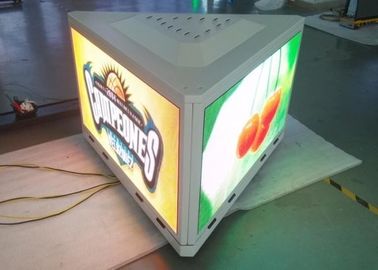

Three Sides Outdoor P3.91 Taxi Top Roof Advertising Led Sign 1000mm x 500mm Per Side
Decription:
1. High brightness. We use outdoor SMD2525 P3.91 led modules, brightness up to 5500cd/sqm, completely suitable for outdoor use.
2, Light weight. Each unit weight is only 80KG/pcs.
3, Low consumption. Max power consumption is 400W/unit.
4, Easy maintenance, convenient installation.
Outdoor LED Taxi Top Display is a new type of electronic media advertising with elegant and attractive
appearance, mainly installed on taxis, buses and other vehicles as a terminal carrier, the purpose is to form a new generation of networked, intelligent, digital outdoor media. This media is an integration of
outdoor, electronics, mobile and WiFi etc.
A variety of connection mode, real-time information publish.
Outdoor Taxi Roof Wideo LED Fullcolor Display had variety data comunications transferring, such as 3G, WIFI, TCP/IP etc, the message data were update without time and the area limited!
Asynchronous full color, 3G wireless cluster control system
Specification:
|
Pixel Pitch |
3.91mm |
|
Pixel Density |
65410dots/sqm |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD2525 |
|
Module Size |
250mm x 250mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Duty |
1/16 Constant Current |
| Display Size | 1000mm x 500mm x 3 sides |
|
Brightness |
>5,500nits |
|
Viewing Distance |
3m ~ 40m |
|
Viewing Angle |
H: 120°, V: 120° |
|
Refresh Rate |
2,000HZ |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
400W/unit |
|
Ave. Power Consumption |
100-150W/sqm |
|
Storage Temperature |
-40℃ ~ +80℃ |
|
Working Temperature |
-20℃ ~ +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 for each side |
|
Operating Humidity |
10% ~ 95% |
|
Control System |
3G/4G/WIFI/Androi |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
