Product Details:
Payment & Shipping Terms:
|
| Name: | Indoor Fixed Led Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Module Size: | 320mm X 160mm | Cabinet Size: | 640x640mm / 960x960mm |
| Brightness: | 2500cd/sqm | Resolution: | 40000dots/sqm |
| Led Chip: | SMD2121 | Led Color: | Black |
| Highlight: | indoor LED video wall,indoor full color LED display |
||
HD SMD Indoor Fixed LED Display / IP43 LED Video Wall For Advertising
Feature:
1. Cabinet Can Be Front or Rear Maintenance
2. LED Chip: SMD2121
3. LED Module Size: 320*160*17mm
4. LED Cabinet Size: 640*640*100mm
5, Cabinet Weight: 14kg/cabinet
6. Control software:Novastar / Linsn
Description:
1. High Definition & High Performance
40000 dots per sqm, SRY P5 indoor fixed led display can show vivid HD images and videos.
2. Vivid Picture Quality
With High refresh rate and high quality LEDs, SRY P5 indoor fixed led display offer excellent visual effect to audience.
3. 2 years warranty
Free replacement and maintenance for spare parts is offered within 2 years.
4. Many types of our products
SRY led display can be designed to many types, such as front service cabinet, double side cabinet, curved led cabinet, led ball and other shapes.
Competitive Advantage:
1, P5 indoor fixed led display uniform in brightness and color.
2, Full color P5 indoor fixed led display is utilizing full black color LED chips.
3, Indoor fixed led display contrast ratio up to 4000:1 to react real color of the content.
4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade.
5, Large viewing angle at 140 degree horizontal and vertical.
6, P5 indoor fixed led display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use.
Specification:
|
Pixel Pitch |
5mm |
|
Pixel Density |
40000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Size |
320mm x 160mm/ 160mm x 160mm |
|
Module Resolution |
64dots x 32dots/ 32dots x 32dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
640mm x 640mm |
|
Cabinet Weight |
14KG |
|
Brightness |
≥2500 cd/sqm |
|
Viewing Distance |
5m-50m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
|
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
subway, airports, stations, gas stations, bookstores, parks, exhibition halls, |
|
Entertainments |
Movie theaters, clubs, bars, stages |

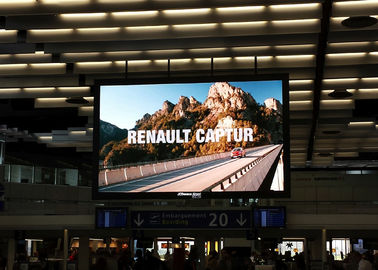

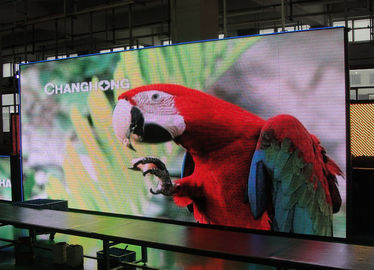

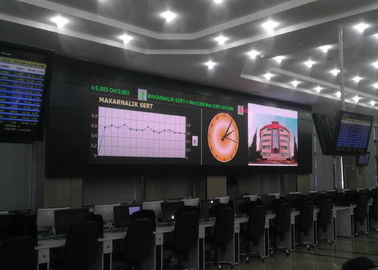

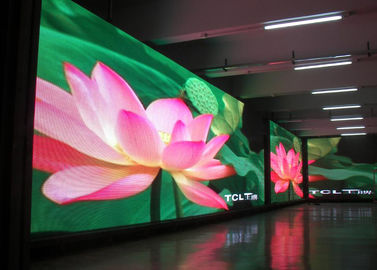

Product images:
